MEAN WELL MPM6548ST Medical Power Module
The MPM-65 series is a compact, high-reliability medical power module delivering 65W with excellent efficiency up to 93%. Designed for medical-grade applications, it works on 80-264VAC input, features ultra-low leakage current (<100HA), and meets IEC/EN60601-1 and ANSI/AAMI ES60601-1 standards with 2 x MOPP level. Its robust design includes over/under voltage, overload, and temperature protections, operates from -30°C to +80°C, and provides 4KVAC isolation. Suitable for BF applications, it offers minimal load requirements, EMI Class B compliance, and has a slim size of 87x52x29.5mm, ideal for medical devices and systems requiring high safety standards.
MEAN WELL MPM6548ST Medical Power Module Specifications:
- Input Voltage: 80-264VAC, 113-370VDC
- Output Power: 65W (max. 71.5W peak for 10 sec.)
- Output Voltages: 12V, 15V, 24V, 48V options
- Peak Current: Up to 11A for 12V, 4.77A for 15V, 2.98A for 24V, 1.49A for 48V
- Efficiency: Up to 93%
- Leakage Current: <100HA
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Dimensions: 87x52x29.5mm for PCB mounting style, 109x52x33.5mm for screw terminal style
- Operating Temperature: -30°C to +80°C, with derating above 50°C
- Isolation Voltage: 4KVAC
- Isolation Level: 2xMOPP
- Vibration Resistance: 2-5G
- Altitude: Up to 4000 meters
- Compliance: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL, CSA
- Operational Frequency: 47-63Hz
- Soldering Temperature: 260°C ±5°C for 10 seconds max
- MTBF: Over 563,000 hours

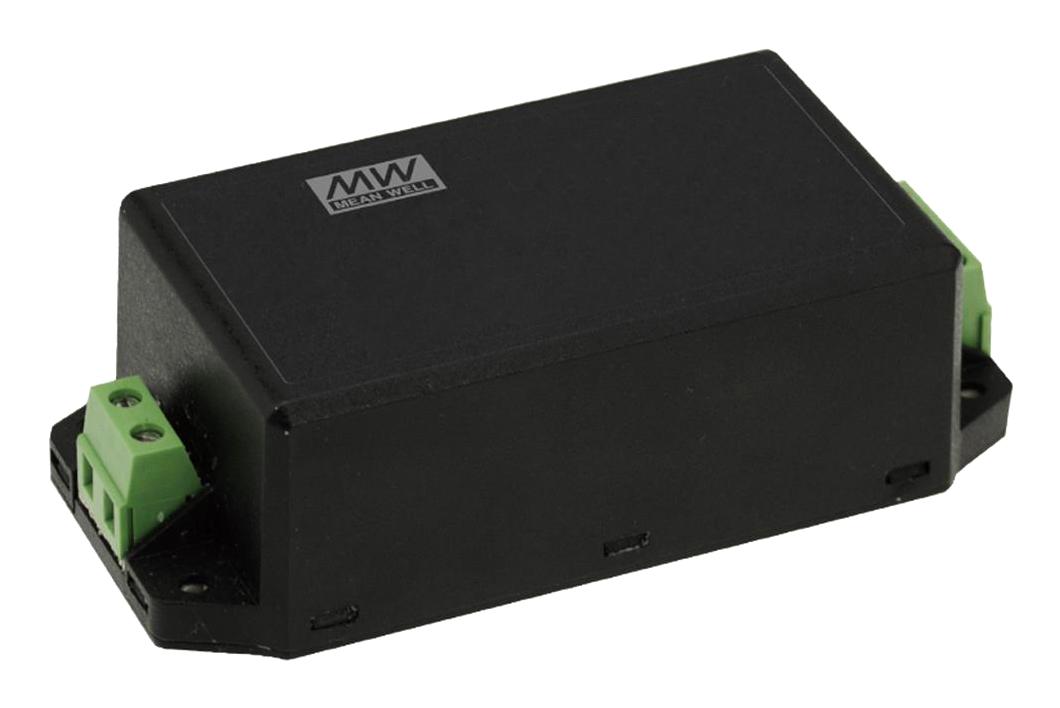

Buy the Mean Well Series MPM Power Module: MPM-65
Secure your medical devices with the high-reliability Mean Well MPM-65 power module. Designed for critical applications, it offers 65W output, low leakage current, and excellent efficiency. Its compact form factor fits easily into medical systems, providing safe isolation and robust protections like overvoltage, overload, and temperature shutdown. Certified to IEC/EN60601-1 standards, it ensures compliance and safety for patient-contact applications. Boost your medical equipment's performance and safety today by purchasing online from trusted distributors, ensuring quality and rapid delivery for your healthcare solutions.
Buy Mean Well MPM-65 medical power module now and experience unmatched reliability and performance in medical device power supply solutions.
Frequently Asked Questions
Where can I buy MEAN WELL MPM6548ST?
You can click on the BUY or RFQ button to purchase MPM6548ST from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MPM6548ST?
You can download the MPM6548ST datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MPM6548ST?
MEAN WELL
