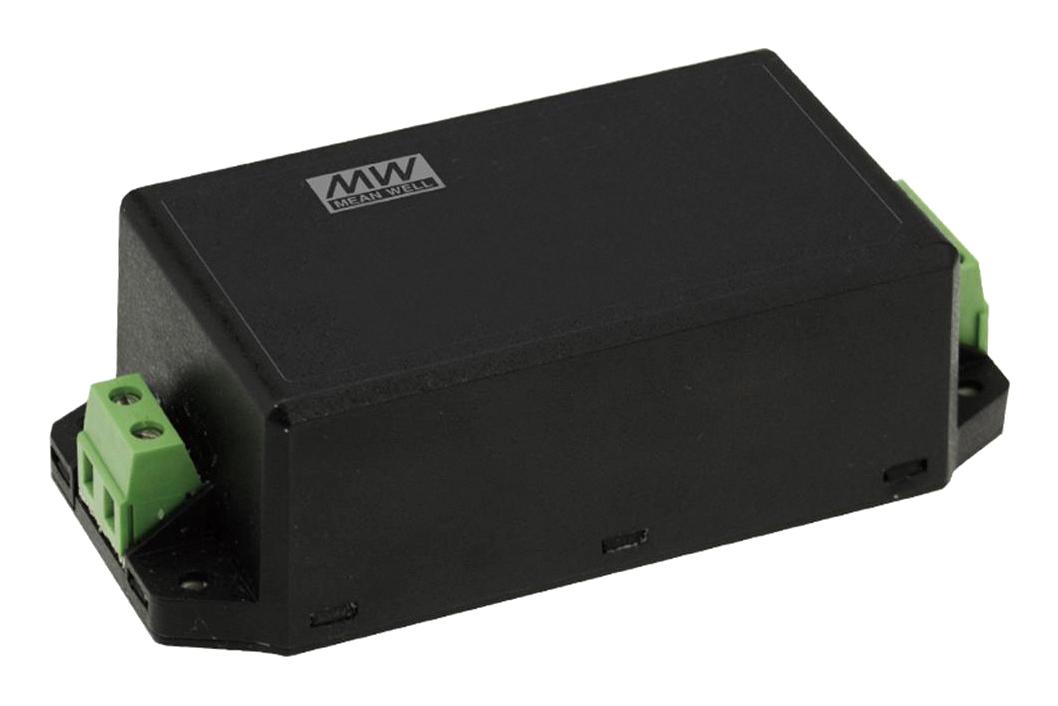

MEAN WELL MPM9048ST Medical Power Module
The MPM-90 series is a compact, medical-grade 90W power supply module designed for hospital and clinical equipment. It supports 80-264VAC input, features high efficiency up to 93%, and operates reliably from -30°C to +80°C. Certification complies with IEC/EN60601-1 and ANSI/AAMI ES60601-1 standards, offering 2x MOPP isolation, ultra-low leakage current, and robust protections including short circuit and overvoltage. Its small size (87x52x29.5mm) and high EMC performance make it ideal for medical devices requiring safety, durability, and versatility.
MEAN WELL MPM9048ST Medical Power Module Specifications:
- Outer Dimensions: 87 x 52 x 29.5 mm
- Input Voltage: 80~264VAC, 113~370VDC
- Output Power: 90W (up to 100W peak for 10 seconds)
- Output Voltages: 12V, 15V, 24V, 48V models
- Peak Current: 7.37A (12V), 6.238A (15V), 4.13A (24V), 2.07A (48V)
- Efficiency: up to 93%
- Ripple & Noise: Max 120mVp-p to 240mVp-p depending on model
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Isolation: 4KVAC, double insulation (Class II)
- Operating Temp: -30°C to +80°C
- Altitude: up to 4000 meters
- EMC: Class B, meets EN61000-4-X standards
- Certifications: IEC/EN60601-1, ANSI/AAMI ES60601-1, UL
Buy the MW MPM-90 – Reliable Medical Power Module for Industrial Applications
Purchase the MW MPM-90 series online today to ensure your medical devices operate safely and efficiently. This high-reliability power module meets strict IEC/EN60601-1 standards, features adjustable voltages, and provides superior EMI performance. Its compact size makes it perfect for portable and embedded medical systems. With protections against short circuit, overload, overvoltage, and overheating, it guarantees safety and durability. Enjoy quick delivery, simplified ordering, and confidence in a proven power solution for hospital, clinic, and patient contact equipment.
Buy MW MPM-90 series now and experience unmatched reliability and performance suitable for medical and industrial equipment.
