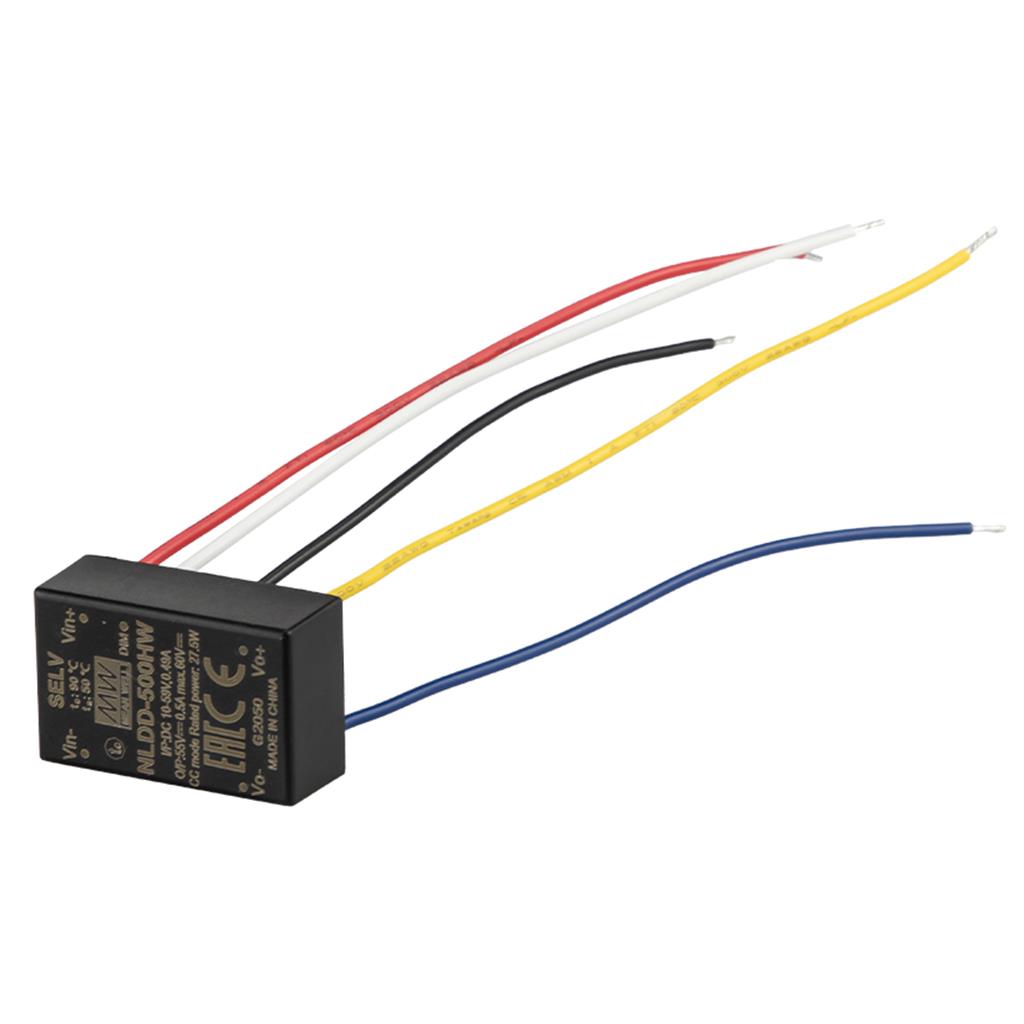

MEAN WELL NLDD350HW Constant Current Step-Down LED Driver
The MEAN WELL NLDD-H series is a 60W DC-DC LED driver featuring constant current output. Operating from 10-56VDC, it offers models with different rated current ranging between 350mA and 1400mA. With high efficiency up to 96%, the NLDD-H series is suitable for driving illumination LEDs and fits for class III or DC bus lighting applications. It includes built-in PWM and remote ON/OFF control, short circuit and over temperature protection, and cooling by free air convection.
MEAN WELL NLDD350HW Constant Current Step-Down LED Driver Specifications:
- constant_current_output: 350mA to 1400mA
- input_voltage: 10 ~ 56VDC (59VDC Max.)
- output_led_forward_voltage: 6 ~ 52VDC
- efficiency: Up to 96%
- switching_frequency: 200KHz
- ripple_noise: 150mVp-p (max)
- full_load_current: 350mA (NLDD-350H)
- no_load_current: 5mA
- pwm_frequency: 100 ~ 1KHz
- quiescent_input_current: 2mA
- short_circuit_protection: Regulated at rated current
- over_temperature_protection: Tj 165℃
- working_temperature: -40 ~ +50℃
- working_humidity: 20% ~ 90% RH
- temp_coefficient: ±0.03% /℃
- vibration: 10 ~ 500Hz
- operating_case_temp: 90℃
- soldering_temperature: Wave soldering: 265℃,5s; Manual soldering: 390℃,3s
- safety_standards: LVD BS EN/EN61347-1, BS EN/EN61347-2-13; IEC61347 and EAC TP TC 004 approved
- emc_emission: Compliance to BS EN/EN55015, BS EN/EN61547
- emc_immunity: Compliance to BS EN/EN61000-4-2,3,4,6,8
- mtbf: 29984.3K hrs min.
- dimension: 32.1*20.5*12.5mm
- weight: 15.6g
- potting_material: Expoxy(UL94-V0)
