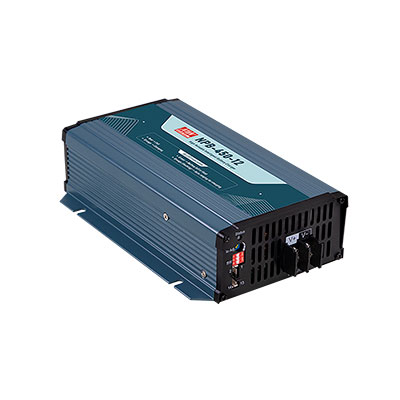

MEAN WELL NPB45024 Ultra Wide Output Battery Charger
The MEAN WELL NPB-450 series is a miniaturized, versatile, and ultra-wide voltage intelligent battery charger. It utilizes a fully digital control design with automatic battery voltage detection, offering features like intelligent, versatile, user-friendly, safe, and compact operation. The charger supports a wide range of applications, including AGVs, robotics, and telecommunications, and complies with safety standards like IEC62368-1 and EN60335-1/2-29. With a 3-year warranty and temperature compensation, the NPB-450 provides reliable and efficient battery charging.
MEAN WELL NPB45024 Ultra Wide Output Battery Charger Specifications:
- Rated Wattage: 450W
- Output Voltage Range: 90 ~ 300VAC, 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: >0.98 (115VAC), >0.95 (230VAC)
- Input: 93%
- Efficiency: 93%
- Operating Temperature: -30 ~ +70℃
- CANbus Interface: CANBus 2.0B
- Temperature Compensation: By external NTC
- Safety Standards: IEC62368-1, EN62368-1, UL62368-1
- Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC
- MTBF: 205*135*55mm
- Dimensions: 205*135*55mm
- Float Charge Voltage: 14.4V (default)
- Recommended Battery Capacity: 90 ~ 300AH
- Short Circuit Protection: Shut down and latch off o/p voltage
- Over Voltage Protection: Shut down O/P voltage
- EMC Immunity: BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11
- EMC Emission: BS EN/EN55032 (CISPR32), BS EN/EN55014-1
