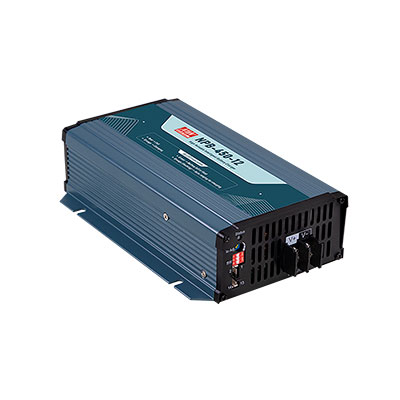

MEAN WELL NPB45048 Ultra Wide Output Battery Charger
The MEAN WELL NPB-450 series is a miniaturized, versatile, and ultra-wide voltage intelligent battery charger. It utilizes a fully digital control design with automatic battery voltage detection and features programmable charging curves and CANbus communication for remote control and monitoring. This charger is suitable for lead-acid (Pb) and Li-ion batteries, offering a 3-year warranty and compliance with safety standards. Its wide input voltage range and intelligent features make it ideal for various applications, including AGVs, robotics, and telecommunications.
MEAN WELL NPB45048 Ultra Wide Output Battery Charger Specifications:
- Rated Wattage: 456.96W
- Input Voltage Range: 90 ~ 300VAC, 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: >0.95 (at 230VAC)
- Output Voltage Range: 42 ~ 80V
- Float Charge Voltage: 57.6V
- Recommended Battery Capacity: 24 ~ 80AH
- Efficiency: 92%
- Operating Temperature: -30 ~ +70℃
- CANbus Interface: CANBus 2.0B
- Temperature Compensation: By external NTC
- Safety Standards: IEC62368-1, UL62368-1, EN60335-1/2-29
- Withstand Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC
- Dimensions: 205*135*55mm
- AC Current: 4.5A/115VAC, 2.2A/230VAC
- Short Circuit Protection: Shut down and latch off o/p voltage
- Over Voltage Protection: Shut down O/P voltage
- Over Temperature Protection: Shut down O/P voltage
- Reverse Polarity Protection: Protected internal reverse detection
