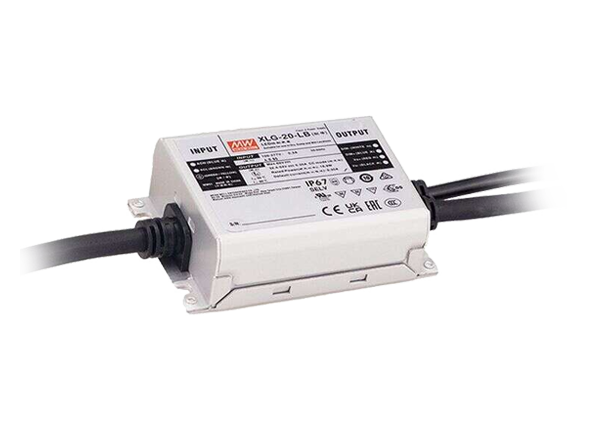

MEAN WELL XLG20M 21W LED Driver
The MEAN WELL XLG-20 series is a 21W AC/DC LED driver designed for constant current mode output applications. Operating within a wide input range of 90-305VAC, this driver offers high efficiency (up to 89%) and a wide operating temperature range of -40℃ to +80℃. Its metal housing and IP67 ingress protection make it suitable for both indoor and outdoor installations. The XLG-20 series incorporates various dimming methodologies and complies with IEC61347/GB7000.1 -2015 and UL8750 safety regulations, ensuring a safe and flexible design for LED lighting systems. It is ideal for street lighting, architectural lighting, low-bay lighting, floodlight lighting, and industrial lighting applications.
MEAN WELL XLG20M 21W LED Driver Specifications:
- Output Voltage Range: 18 ~ 30V
- Rated Power: 21W
- Rated Current: 700mA
- Input Voltage Range: 90 ~ 305VAC
- Efficiency (Typ.): 88.5%
- No Load Power Consumption: <0.5W
- Inrush Current (Typ.): 500ms, 150ms/115VAC, 230VAC
- Frequency Range: 47 ~ 63Hz
- Power Factor: PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.91/277VAC@full load
- Total Harmonic Distortion: <20% (@load≧50%/115VC,230VAC; @load≧75%/277VAC)
- Ripple & Noise: < 20%
- Line Regulation: ±3%
- Working Temperature: -40 ~ +80℃
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature: Not specified
- Temp. Coefficient: ±0.03%/℃(0 ~ 60℃)
- Vibration: 10 ~ 500Hz, 5G 12min./1cycle
- MTBF: 5721.2K hrs min. Telcordia SR-332
- Dimension: 95*63*30mm (L*W*H)
- Safety Standards: UL8750, CSA C22.2 No. 250.13-12, ENEC, IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13
- Protection: I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC / 25℃ / 70% RH
- Constant Current Region: 25.2 ~ 42V
- Open Circuit Voltage (max.): 60V
Buy the XLG-20-M MEAN WELL 21W LED Driver | myMectronic
Purchase the MEAN WELL XLG-20-M LED driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL XLG20M?
You can click on the BUY or RFQ button to purchase XLG20M from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG20M?
You can download the XLG20M datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG20M?
MEAN WELL
