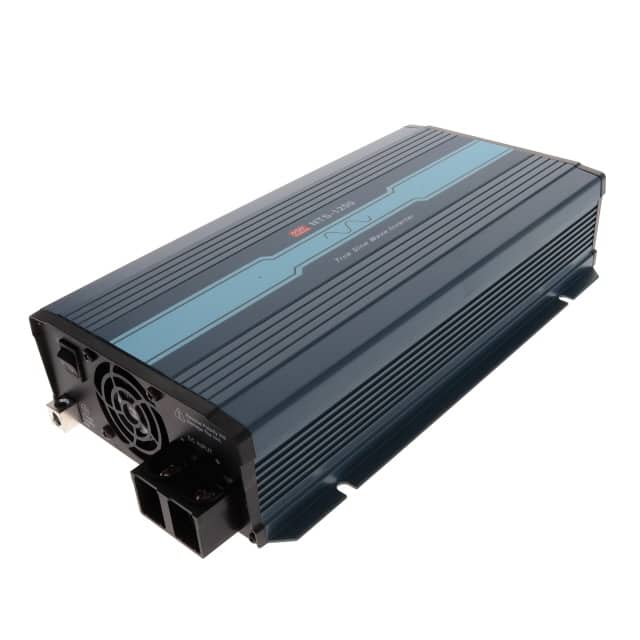

MEAN WELL NTS1200248UN 1200W True Sine Wave Inverter
The MEAN WELL NTS-1200-248UN is a 1200W high-reliability off-grid true sine wave DC-AC power inverter designed for a wide range of applications. It incorporates a digital design with MCU control, streamlined circuitry for quick response to environmental changes, and a high-quality fan for low acoustic noise. Key features include adjustable AC output voltage and frequency, a wide operating temperature range, and complete protection features. Combined with batteries, the NTS-1200-248UN is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power.
MEAN WELL NTS1200248UN 1200W True Sine Wave Inverter Specifications:
- Rated Power: 1200W
- Over Rated Power (3 Min.): 1380W
- Peak Power (10 Sec.): 1800W
- Surge Power (30 Cycles): 2000W
- AC Voltage: 100 / 110 / 115 / 120Vac (selectable), 200 / 220 / 230 / 240Vac (selectable)
- Frequency: 50/60Hz (selectable)
- DC Input Voltage: 24Vdc, 48Vdc
- DC Voltage Range: 20 ~ 33Vdc, 40 ~ 66Vdc
- DC Current: 60A, 30A
- No Load Dissipation: 1.2W
- Off Mode Current Draw: ≦1mA
- Efficiency: 91% - 93%
- Battery Types: Lead Acid or li-ion
- Fuse (Internal): 40A*4, 40A*2, 25A*2, 25A*2, 40A*2, 40A*4
- Low Voltage Alarm: 11±0.3Vdc
- Low Voltage Shutdown: 10±0.3Vdc
- High Voltage Alarm: 62±1Vdc
- High Voltage Shutdown: 66±1Vdc
- Waveform: True sine wave (THD<3%)
- AC Regulation: ±3.0% at rated input voltage
