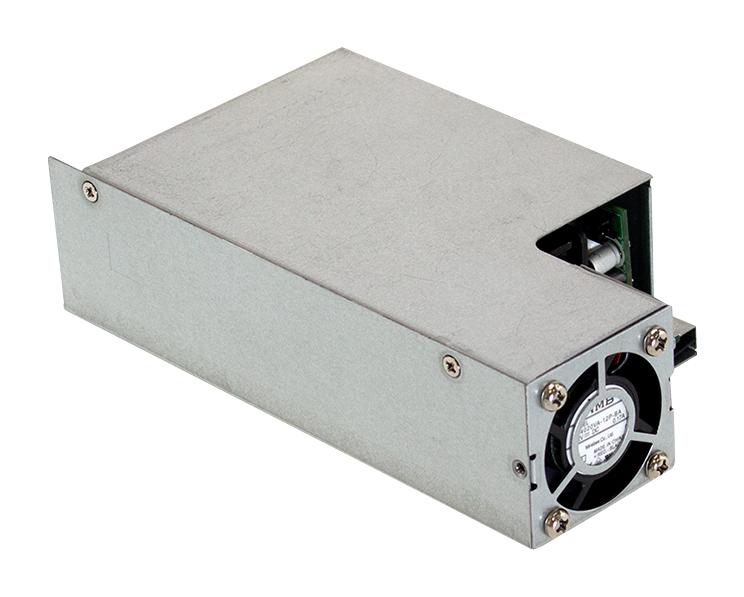

MEAN WELL RPS40027SF medical power supply
The RPS-400 series is a highly reliable 400W medical power supply designed for demanding healthcare equipment. Compact 5x3 inch footprint, it supports 80-264VAC input with output voltages between 12V and 48V. Featuring high efficiency up to 94%, low no-load power consumption below 0.5W, and low leakage current under 160μA, it complies with international medical safety standards including 2*MOPP and IEC/EN60601-1. Suitable for Class I and Class II BF applications, it offers excellent EMI performance, multiple protection features, and models with enclosed or fan-assisted enclosures for versatile medical device integration.
MEAN WELL RPS40027SF medical power supply Specifications:
- Input Voltage: 80~264VAC, 47~63Hz
- Output Voltages: 12V, 15V, 18V, 24V, 36V, 48V
- Rated Power: 400W, Convection 250W, Forced Air 400W
- Efficiency: Up to 94%
- Ripple & Noise: Max. 200mVp-p
- Protection: Short Circuit, Overload, Over Voltage, Over Temperature
- Operating Altitude: Up to 4000 meters
- Touch Current: Less than 160μA
- EMC Compliance: EN55011, CLass B for conducted and radiated emissions
- Safety Standards: UL, ANSI/AAMI ES60601-1, IEC/EN60601-1, 2*MOPP isolation
- Dimensions: PCB type 127*76.2*35mm, Enclosed models up to 160*86*66.5mm
- Cooling: Convection cooling or with fan (on top or side depending on model)
- Operating Temperature: -30°C to +70°C
- Protection Levels: Overvoltage, Overload, Over Temperature, Short Circuit
- Mounting: Suitable for screw mounting with recommended torque 4~6 Kgf-cm
Buy the Mean Well Series RPS 400 Medical Power Supply: RPS40027SF
Enhance your medical device’s reliability with the RPS-400 power supply from Mean Well. Designed for critical healthcare applications, it features high efficiency up to 94%, low leakage current, and robust protections. Compact and versatile, it suits various medical systems, including BF-rated and bedside equipment. With compliance to international safety standards like IEC/EN60601-1, it ensures safety without compromising performance. Purchase online today to enjoy fast delivery, excellent quality, and dependable power solutions for demanding medical environments.
Buy Mean Well RPS40027SF now and experience unmatched reliability and performance for medical equipment with high efficiency and safety standards.
