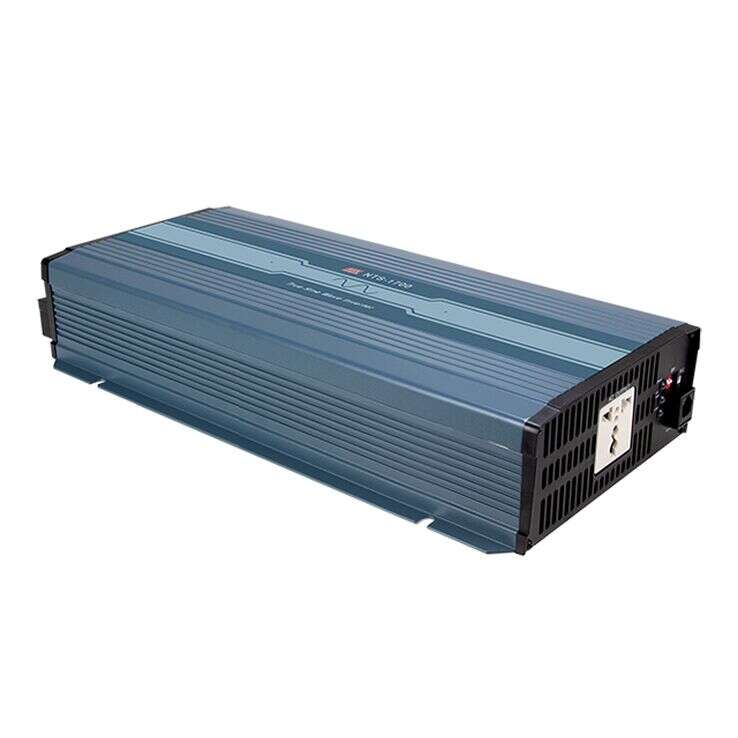

MEAN WELL NTS1700112UN High Reliable Sine Wave Inverter
The MEAN WELL NTS-1700 is a 1700W high reliable off-grid true sine wave DC-AC power inverter. Its key features include a digital design with MCU control, streamlined circuitry, high-quality fan, adjustable AC output voltage and frequency, wide operating temperature range, and complete protection features. Combined with batteries, the NTS-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power.
MEAN WELL NTS1700112UN High Reliable Sine Wave Inverter Specifications:
- Waveform: True sine wave (THD<3%)
- AC_Regulation: ±3.0% at rated input voltage
- DC_Input: 24Vdc, 48Vdc, 12Vdc
- Voltage_Range: 20 ~ 33Vdc, 40 ~ 66Vdc, 10 ~ 16.5Vdc
- DC_Current: 75A, 37.5A, 170A, 150A
- Off_Mode_Current_Draw: ≦1mA
- No_Load_Dissipation: 1.4W
- Efficiency: 90%
- Battery_Types: Lead Acid or li-ion
- Fuse_Internal: 40A*6, 40A*3, 25A*3, 25A*3, 40A*3, 40A*6
- Low_Voltage_Shutdown: 11±0.3Vdc
- High_Voltage_Alarm: 62±1Vdc
- High_Voltage_Shutdown: 66±1Vdc
- Restart_Voltage: 60±1Vdc
- Over_Temperature_Protection: Shut down o/p voltage, re-power on to recover
- Output_Short_Protection: Shut down o/p voltage, re-power on to recover
- Overload_Protection: 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
