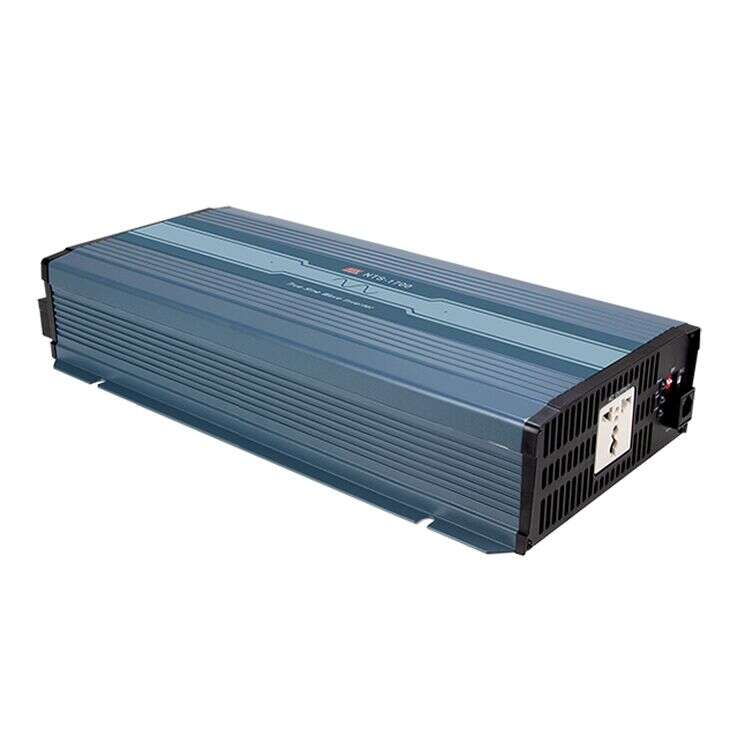

MEAN WELL NTS1700148UN High Reliable Sine Wave Inverter
The MEAN WELL NTS-1700 is a 1700W high reliable off-grid true sine wave DC-AC power inverter. Its key features include a digital design with MCU control, streamlined circuitry, high-quality fan, adjustable AC output voltage and frequency, wide operating temperature range, and complete protection features. Combined with batteries, the NTS-1700 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power.
MEAN WELL NTS1700148UN High Reliable Sine Wave Inverter Specifications:
- Waveform: True sine wave (THD<3%)
- AC Regulation: ±3.0% at rated input voltage
- DC Input: 24Vdc, 48Vdc, 12Vdc
- Voltage Range: 20 ~ 33Vdc, 40 ~ 66Vdc, 10 ~ 16.5Vdc
- DC Current: 75A, 37.5A, 170A, 42.5A, 150A
- Off Mode Current Draw: ≦1mA
- No Load Dissipation: 1.4W
- Efficiency: 90%
- Battery Types: Lead Acid or li-ion
- Fuse (Internal): 40A*6, 40A*3, 25A*3, 25A*3, 40A*3, 40A*6
- Low Voltage Alarm: 11±0.3Vdc
- High Voltage Alarm: 50±1Vdc
- Low Voltage Shutdown: 10±0.3Vdc
- High Voltage Shutdown: 62±1Vdc
- Restart Voltage: 60±1Vdc
- Over Temperature Protection: Shut down o/p voltage, re-power on to recover
- Output Short Protection: Shut down o/p voltage, re-power on to recover
- Over Load: 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
Buy the NTS-1700-148UN MEAN WELL High Reliable Sine Wave Inverter | myMectronic
Purchase the MEAN WELL NTS-1700-148UN securely and reliably for your power needs.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL NTS1700148UN?
You can click on the BUY or RFQ button to purchase NTS1700148UN from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NTS1700148UN?
You can download the NTS1700148UN datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NTS1700148UN?
MEAN WELL
