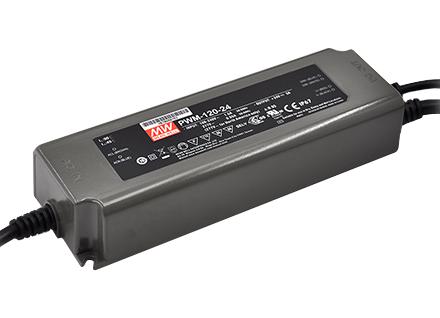

MEAN WELL PWM12024DA PWM Series LED Driver
The PWM-120 series is a 120W LED driver designed for indoor and outdoor LED lighting applications, including LED strips and decorative lighting. It features constant voltage PWM output at 1.47kHz frequency, with high efficiency up to 90.5%, and a fanless, IP67-rated waterproof enclosure suitable for dry, damp, or wet environments. The driver supports multiple dimming methods such as 3-in-1 dimming, DALI, and resistance control, providing excellent flexibility. It operates from 90 to 305VAC, ensuring reliable performance in varied ambient temperatures from -40°C to +90°C, and offers a lifespan exceeding 50,000 hours with a 5-year warranty.
MEAN WELL PWM12024DA PWM Series LED Driver Specifications:
- Rated Power: 120W
- Output Voltage Options: 12V, 24V, 36V, 48V
- Rated Current: 10A (12V), 5A (24V), 3.48A (36V), 2.5A (48V)
- Frequency: 1.47kHz
- Input Voltage Range: 90~305VAC or 127~431VDC
- Power Factor: >0.97/115VAC, >0.96/230VAC, >0.94/277VAC
- Efficiency: up to 90.5%
- Operating Temperature: -40°C to +90°C
- Ingress Protection: IP67
- Dimming Options: 3 in 1 (0-10V, PWM, resistance), DALI (for 12V/24V models)
- Dimensions: 191mm x 63mm x 37.5mm
- Standby Power Consumption: <0.5W
- Lifetime: >50,000 hours
- Protection: Over Voltage, Over Temperature, Short Circuit, Overload
- Certifications: UL, CE, EMI standards
Buy the Afula Series PWM LED Driver: PWM-120120
Enhance your LED lighting projects with the PWM Series PWM-120120 LED driver. Featuring IP67 waterproof protection, high efficiency up to 90.5%, and versatile dimming options, this 120W driver is perfect for indoor and outdoor LED strips, decorative lighting, and architectural applications. Its extensive temperature range from -40°C to +90°C ensures reliable performance in various environments. Easy to install with multiple voltage options, its long lifespan and 5-year warranty make it a dependable choice for professionals seeking quality control components for sustainable lighting solutions.
Get Afula PWM-120120 today—built for precision, durability, and flexible dimming for LED strip lighting and decorative applications.
Frequently Asked Questions
Where can I buy MEAN WELL PWM12024DA?
You can click on the BUY or RFQ button to purchase PWM12024DA from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part PWM12024DA?
You can download the PWM12024DA datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of PWM12024DA?
MEAN WELL
