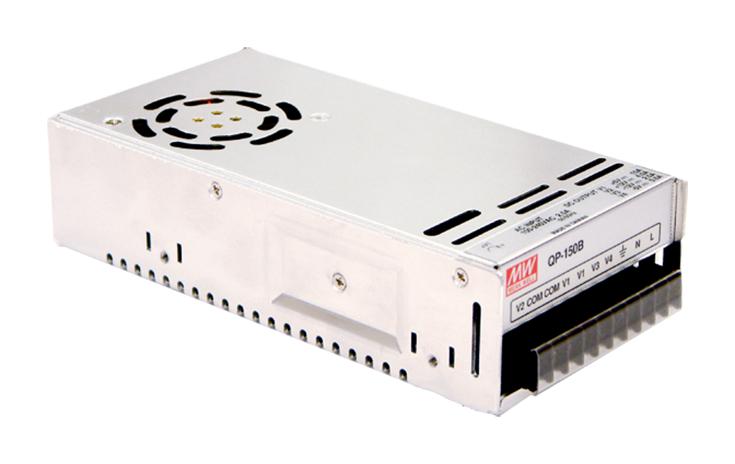

MEAN WELL QP1503C Quad Output Power Supply
The MEAN WELL QP-150-3C is a versatile 150W quad output power supply designed for a wide range of industrial applications. Featuring a universal AC input and a built-in active PFC function, it ensures efficient power delivery and compliance with stringent power quality standards. The unit incorporates comprehensive protection mechanisms including short circuit, over load, and over voltage protection. Forced air cooling via a built-in DC fan maintains optimal operating temperatures. Its multiple outputs and compact design make it suitable for powering diverse electronic devices and systems.
MEAN WELL QP1503C Quad Output Power Supply Specifications:
- Universal AC input: Full range
- PFC: Built-in active PFC function, PF>0.95
- Protections: Short circuit / Over load / Over voltage
- Cooling: Forced air cooling by built-in DC fan
- Switching Frequency: Fixed switching frequency at 100KHz
- Warranty: 3 years
- DC Voltage: 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Power Factor: PF>0.95/230VAC, PF>0.98/115VAC at full load
- Efficiency: 73%
- Ripple & Noise: 100mVp-p
- Voltage Tolerance: ±3.0%
- Input Current: 2.5A/115VAC, 1.2A/230VAC
- Hold Up Time: 800ms, 50ms/230VAC, 1800ms, 50ms/115VAC at full load
- Isolation Voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC / 25°C / 70% RH
- Working Temperature: -10 ~ +60°C (Refer to 'Derating Curve')
- Working Humidity: 20 ~ 90% RH non-condensing
- Storage Temperature & Humidity: -20 ~ +85°C, 10 ~ 95% RH non-condensing
- Dimension: 199*99*50mm (L*W*H)
- Weight: 0.93Kg
- Packing: 20pcs/19.6Kg/1.28CUFT
- Overload: 105 ~ 150% rated output power
- Over Voltage: Protection type : Shut down o/p voltage, re-power on to recover
- Over Temperature: Protection type : Hiccup mode, recovers automatically after fault condition is removed
- Safety Standards: UL60950-1, TUV EN60950-1 EAC TP TC 004 approved
- EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3,EAC TP TC 020
- EMC Immunity: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A,EAC TP TC 020
