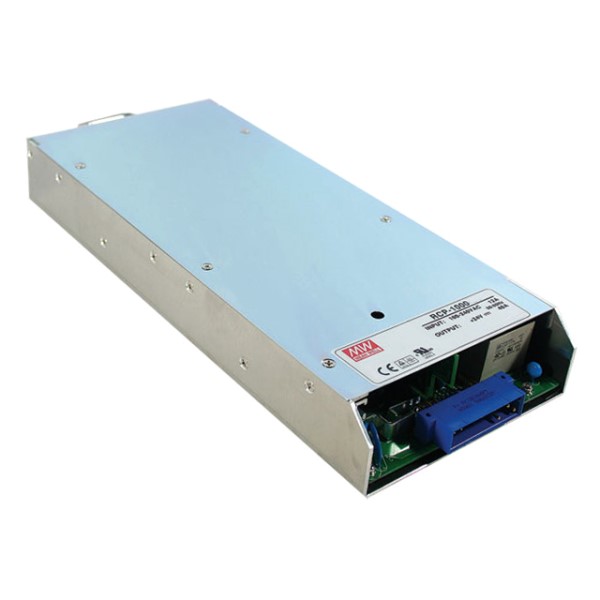

MEAN WELL RCP100024C 1000W Rackmount Power Supply
The MEAN WELL RCP-1000-24-C is a 1000W single output rack mountable front end AC/DC power supply. It operates for 90-264VAC input voltage and offers models with DC output. This series is designed for industrial automation, distributed power architecture systems, wireless telecommunication solutions, redundant power systems, electric vehicle charger systems, and constant current source systems. It provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote control, auxiliary power, and alarm signal.
MEAN WELL RCP100024C 1000W Rackmount Power Supply Specifications:
- Dimension: 295 * 127 * 41mm
- Output Voltage: 12V / 24V / 48V
- Rated Current: 60A / 40A / 21A
- Rated Power: 720W / 960W / 1008W
- Voltage Adjustment Range: 11.6 ~ 12.4V / 23.2 ~ 24.8V / 46.3 ~ 49.7V
- Line Regulation: ±1.0%
- Load Regulation: ±1.0%
- Ripple and Noise: 150mVp-p / 200mVp-p / 300mVp-p
- Efficiency: 81% / 87% / 89%
- Input Voltage Range: 90 ~ 264VAC / 127 ~ 370VDC
- Frequency Range: 47 ~ 63Hz
- Hold-up Time: 1000ms / 60ms
- Protection: Short circuit / Overload / Over voltage / Over temperature
- Remote Sense: Compensate voltage drop up to 0.5V
- Remote On-Off Control: Electrical signal or dry contact
- Auxiliary Power: 5V @ 0.3A
- Safety Standards: UL62368-1, CSA C22.2, TUVBS EN/EN62368-1, EAC TP TC 004
- Withstand Voltage: 3KVAC (I/P-O/P), 2KVAC (I/P-FG), 0.7KVDC (O/P-FG)
- MTBF: 840.8K hrs min.
- Packing: 1.93Kg; 6pcs/12.6Kg/1.04CUFT
