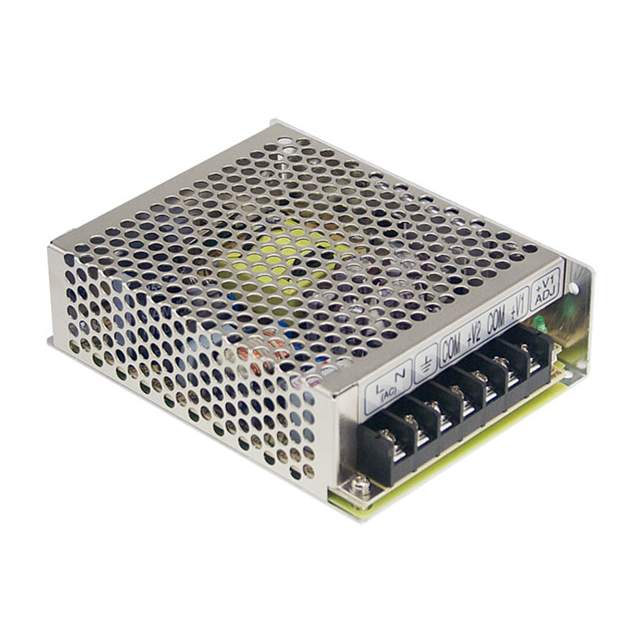

MEAN WELL RD50B Dual Output Switching Power Supply
The MEAN WELL RD-50B is a 50W dual output switching power supply engineered for robust and dependable operation in a wide range of industrial and commercial applications. It boasts a universal AC input voltage range and comprehensive protection features including short circuit, overload, and over voltage protection. The unit utilizes high-efficiency components and a cooling system via free air convection, ensuring stable performance and long-term reliability. It is designed to withstand harsh environments, including surge input and vibration, and is compliant with key safety and EMC standards. The RD-50B is ideal for powering sensitive electronic equipment where a stable and reliable power source is critical.
MEAN WELL RD50B Dual Output Switching Power Supply Specifications:
- output_voltage: 5V, 12V, 24V
- rated_current_ch1: 6A
- rated_current_ch2: 2A
- current_range_ch1: 0.3 ~ 6A
- current_range_ch2: 0.3 ~ 3A
- rated_power: 54W
- voltage_adjustment_range_ch1: 4.75 ~ 5.5V
- line_regulation: ±2.0%
- load_regulation: ±7.0%
- setup_rise_time: 500ms, 20ms/230VAC; 1200ms, 30ms/115VAC
- hold_up_time: 60ms/230VAC; 12ms/115VAC
- input_voltage_range: 88 ~ 264VAC, 125 ~ 373VDC
- input_frequency_range: 47 ~ 63Hz
- efficiency: 79%
- ac_current: 1.3A/115VAC, 0.8A/230VAC
- inrush_current: 33A/230VAC
- leakage_current: <2mA / 240VAC
- safety_standards: UL60950-1, TUV EN60950-1 approved
- working_temperature: -25 ~ +70℃
- working_humidity: 20 ~ 90% RH non-condensing
- storage_temperature_humidity: -40 ~ +85℃, 10 ~ 95% RH
- temperature_coefficient: ±0.03%/℃(0 ~ 50℃)
- vibration: 10 ~ 500Hz, 5G 10min./1cycle
- mtbf: 172.6Khrs min.
- dimension: 99*97*36mm
- overload: 110 ~ 150% rated output power
- over_voltage: Protection type : Hiccup mode
- withstand_voltage: I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
- isolation_resistance: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- ripple_and_noise: 80mVp-p (CH1), 120mVp-p (CH2), 80mVp-p (CH1), 150mVp-p (CH2)
