MEAN WELL HBG20048 LED Driver

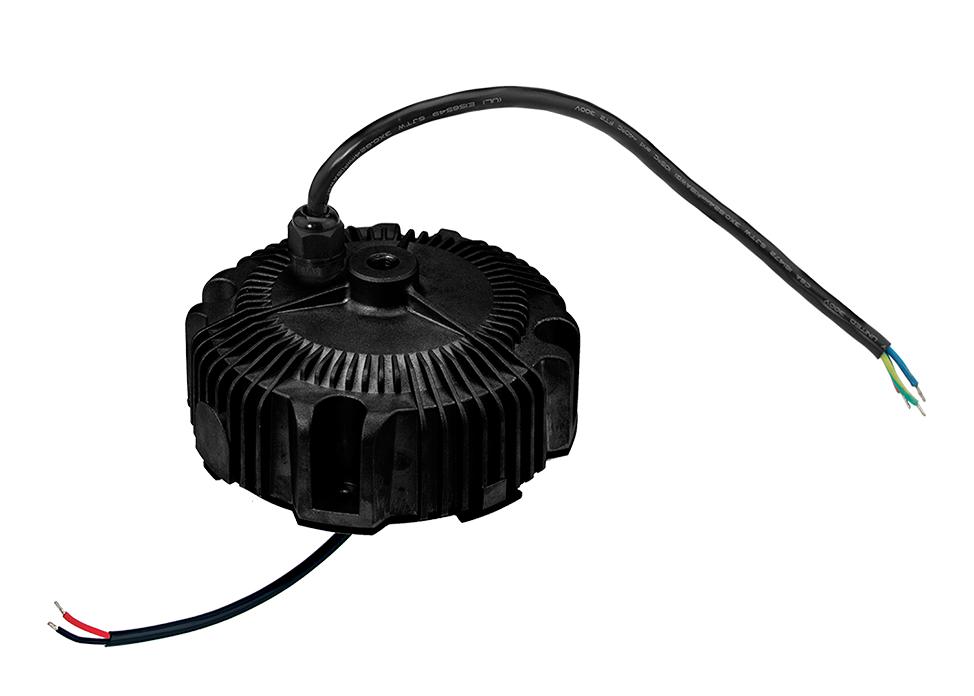

HBG-200 series is a 200W AC/DC LED driver with circular metal housing, operating from 90~305VAC. It features both constant voltage and constant current modes with rated voltages between 36V and 60V. Capable of working at -40°C to +85°C, it offers up to 93.5% efficiency with a fanless design. Suitable for indoor and outdoor lighting applications, including high/low bay, canopy, architectural, stage, and spotlighting. It includes dimming options such as 3-in-1, DALI, and adjustable output via potentiometer, with IP67/IP65 ratings for durability.
MEAN WELL HBG20048 LED Driver Specifications:
- Power: 200W
- Input Voltage: 90~305VAC
- Output Voltage: 36V, 48V, 60V (adjustable within specified range)
- Rated Current: 55A (36V), 43.94A (48V), 33.1A (60V)
- Ripple & Noise: 250-350mVp-p
- Efficiency: Up to 93.5%
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP67/IP65
- Dimensions: Refer to mechanical specifications
- Lifetime: >50,000 hours
- Dimming: 3-in-1, DALI, via potentiometer
- Protection: Over current, short circuit, over temperature, auto recovery
- Compliance: UL, CSA, ENEC, IEC standards
- Built-in active PFC
Buy the Mean Well HBG-200 Reliable LED Driver for Industrial Applications
Enhance your lighting setup with the high-performance HBG-200 series LED driver from Mean Well. Offering 200W power, dual constant voltage and current modes, high efficiency up to 93.5%, and IP67/IP65 ratings. It supports various dimming options, including 3-in-1, DALI, and adjustable outputs via potentiometers for versatile lighting projects. Designed for extreme temperatures from -40°C to +85°C, it ensures long-lasting operation with a lifetime exceeding 50,000 hours. Perfect for indoor and outdoor lighting, architectural, stage, and high bay applications, providing reliable and energy-efficient illumination.
Buy Mean Well HBG-200 now and experience unmatched reliability and performance in indoor and outdoor LED lighting systems.
Frequently Asked Questions
Where can I buy MEAN WELL HBG20048?
You can click on the BUY or RFQ button to purchase HBG20048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HBG20048?
You can download the HBG20048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HBG20048?
MEAN WELL
