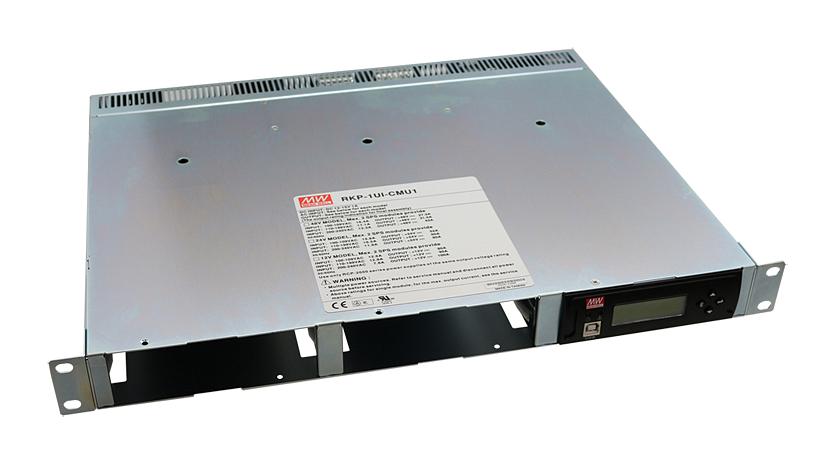

MEAN WELL RKP1UICMU1 Power Distribution Rack System
The RKP-1U rack system is a flexible power distribution solution in a compact 1U profile, supporting up to 6000W with active current sharing and various programmable features. It incorporates redundancy, hot swap capabilities, and supports PMBus communication, making it ideal for industrial automation, wireless, telecommunication, and electric vehicle charging applications. The system consists of a 2000W front-end rectifier and can be stacked to meet higher power demands up to 18kW, ensuring reliable power delivery with extensive monitoring options.
MEAN WELL RKP1UICMU1 Power Distribution Rack System Specifications:
- Rack Dimensions: 350.8*482.6*44 mm (13.8*19*1.73 inch)
- Power Rating: 2000W per module, stackable to 6000W with active current sharing
- Input Voltage: 90~264VAC / 127~370VDC, Frequency: 47~63Hz
- Output Voltage: Programmable 90~110% of nominal (12V, 48V options)
- Max Output Current: 300A (12V), 126A (48V), Max Power: 3600W (12V), 6048W (48V)
- Efficiency: High, with built-in PMBus for remote monitoring and control
- Features: Redundant power, hot swap support, remote ON/OFF, auxiliary power outputs, and environmental compliance
- Standards: UL60950-1, TUV EN60950-1
- Operating Temperature: 40°C to +70°C, Storage: -40°C to +85°C
- Vibration Resistance: 10~500Hz, 2G, 60 min along X,Y,Z axes
- Safety & EMC: Compliant with EN standards, includes EMI filtering and dielectric withstand
- Physical: Rack mountable with mounting brackets, weight approximately 14.4kg
Buy the MW Series Power System: RKP-1U Rack System 6000W
Enhance your power infrastructure with the MW Series RKP-1U Rack System. Offering up to 6000W with active current sharing, redundancy, and programmable features, this compact 1U rack system is ideal for telecom, industrial automation, and electric vehicle charging. It supports hot swap, remote control, and monitoring via PMBus, ensuring seamless operation and maintenance. Designed for high performance in demanding environments, order online today and secure reliable, flexible power solutions tailored to your project needs.
Order your MW Series RKP-1U Rack System today and ensure reliable power distribution for industrial, telecom, and EV charging projects.
Frequently Asked Questions
Where can I buy MEAN WELL RKP1UICMU1?
You can click on the BUY or RFQ button to purchase RKP1UICMU1 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RKP1UICMU1?
You can download the RKP1UICMU1 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RKP1UICMU1?
MEAN WELL
