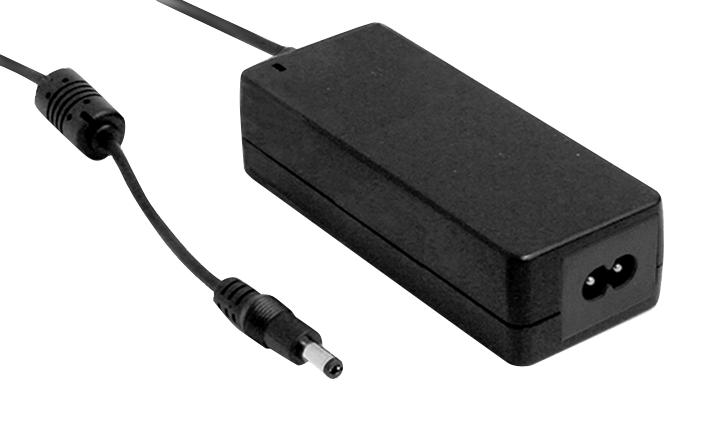

MEAN WELL GSM90B48P1M Medical Power Adapter
GSM90B48P1M is a high-reliability, 90W medical power adaptor designed for medical devices requiring a stable 48VDC output. It features a universal input range of 80VAC to 264VAC, a 2-pin IEC320-C8 inlet, and a highly efficient circuitry design with up to 91% efficiency. Compliance with international medical safety standards, ultra-low leakage current (<100uA), and a 94V-0 flame-retardant plastic case ensure safety and durability. Suitable for portable and bedside devices like infusion pumps, monitors, and hemodialysis machines, it offers protections such as overload, overvoltage, and thermal shutdown. Its low no-load power consumption (<0.15W) supports energy-saving regulations. Designed for medical environments, it provides reliable performance with a 3-year warranty.
MEAN WELL GSM90B48P1M Medical Power Adapter Specifications:
- Input Voltage: 80-264VAC, 47-63Hz
- Output Voltage: 48VDC
- Rated Power: 90W
- Output Ripple & Noise: 240mVp-p
- Voltage Tolerance: ±2.5%
- Efficiency: up to 91%
- Leakage Current: <100uA at 264VAC
- Protection: Short circuit, overcurrent, overvoltage, overtemperature
- Working Temperature: -30°C to +60°C
- Dimensions: 145mm x 60mm x 32mm
- Safety Certifications: UL60601-1, EN60601-1
- MTBF: 405,600 hours
- Enclosure: Fully enclosed flame-retardant plastic case
- Power Indicator: LED
- Warranty: 3 years
Buy the Buy Mean Well GSM90B48P1M Part Number GSM90B48P1M Online
Purchase the reliable and efficient medical power adapter designed to support critical healthcare devices with stable 48VDC output. Featuring universal input from 80VAC to 264VAC, high efficiency up to 91%, and a safety-proven enclosure, this adapter meets international standards including UL60601-1 and EN60601-1. Its ultra-low leakage current ensures patient safety, while protections against overload, overvoltage, and temperature fluctuations guarantee durability. Ideal for infusion pumps, monitors, and portable medical systems, it offers energy savings with low no-load power consumption, and a 3-year warranty offers peace of mind for ongoing medical operations.
Order your Mean Well Series GSM90B48P1M today and ensure your medical devices operate with dependable power and compliant safety standards.
Frequently Asked Questions
Where can I buy MEAN WELL GSM90B48P1M?
You can click on the BUY or RFQ button to purchase GSM90B48P1M from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM90B48P1M?
You can download the GSM90B48P1M datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM90B48P1M?
MEAN WELL
