MEAN WELL RPS6512 Medical Power Supply
RPS-65 is a highly reliable 65W medical power supply with high power density in a small 3x2 inch footprint, accepting 80-264VAC input. It offers output voltages from 3.3V to 48V, with efficiencies up to 91% and no-load power consumption below 0.1W. Designed for Class II systems, it features extremely low leakage current under 100A, and complies with international medical safety standards (2*MOPP). Ideal for medical systems such as oral irrigators, hemodialysis machines, and sleep apnea devices, with protections for short circuit, overload, and over voltage.
MEAN WELL RPS6512 Medical Power Supply Specifications:
- Input Voltage: 80~264VAC
- Output Power: 65W
- Output Voltages: 3.3V, 5V, 7.5V, 12V, 15V, 24V, 48V
- Rated Currents: 10A (3.3V, 5V), 8A (7.5V), 5.424A (12V), 4.344A (15V), 2.71A (24V), 1.364A (48V)
- Ripple & Noise: Max. 80mVp-p (varies with voltage), Peak load support up to 71.5W
- Dimensions: 76.2mm x 50.8mm x 24mm (3" x 2" x 0.945")
- Efficiency: Up to 91%
- Leakage Current: Less than 100A
- No Load Power Consumption: Below 0.1W
- Operating Temperature: -30°C to +70°C
- Operating Altitude: Up to 4000 meters
- Protection: Short circuit, Overload, Over voltage
- Isolation: 2xMOPP, Up to 4kV AC withstand voltage
- Standards: TUV EN60601-1, IEC60601-1, UL 60601-1, EMC EN55011, EN61000-3-2
- Humidility: 20% to 90% non-condensing
- Vibration: 10Hz–500Hz, 2G
- MTBF: 959.1K hours

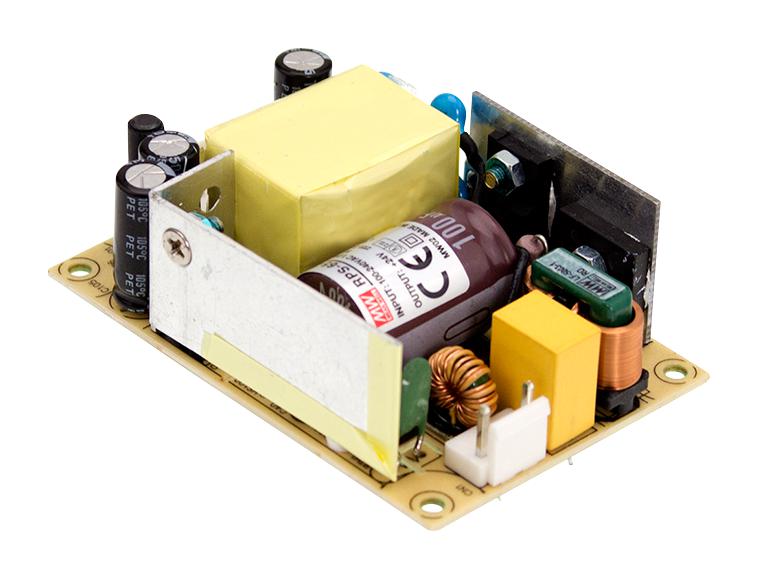

Buy the Mean Well Series RPS Power Supply: RPS-65-12
Experience the exceptional reliability of the Mean Well RPS-65 series medical power supply. With a compact 3x2 inch size, up to 91% efficiency, and low leakage current, this power supply ensures safe and stable operation across a wide temperature range. It's perfect for medical devices like monitors, sleep apnea systems, and dialysis equipment. Designed for Class II installations, it offers multiple output voltages, advanced protections, and compliance with global safety standards. Order online today to ensure your medical equipment runs smoothly with high quality and long-lasting performance.
Get Mean Well RPS-65-12 today—built for medical precision, durability, and reliable performance in critical health devices.
Frequently Asked Questions
Where can I buy MEAN WELL RPS6512?
You can click on the BUY or RFQ button to purchase RPS6512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS6512?
You can download the RPS6512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS6512?
MEAN WELL
