MEAN WELL IRM029S Miniature Power Supply Module

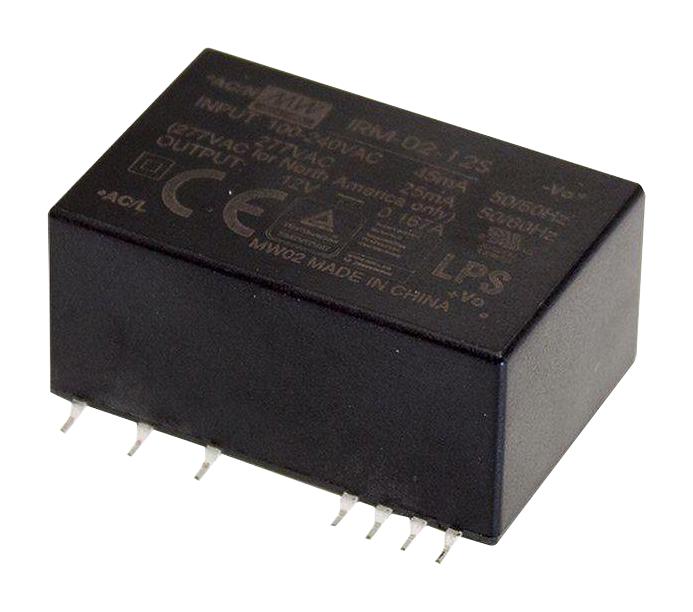

IRM-02 series is a compact 2W AC-DC power supply module designed for industrial and electronic equipment. It features an 85~305VAC universal input, high efficiency up to 77%, and low no-load power consumption below 0.075W. The fully-potted silicone case provides thermal management and dust/moisture resistance, meeting anti-vibration standards up to 5G. Its Class II design and integrated EMI filtering ensure compliant EMC performance, including EN55022 Class B. Suitable for PCB mounting or SMD style, this reliable power supply is ideal for automation, handheld devices, and industrial automation apps, with a 3-year warranty.
MEAN WELL IRM029S Miniature Power Supply Module Specifications:
- Input Voltage Range: 85~305VAC
- Output Power: 2W
- Output Voltages: 3.3V, 5V, 9V, 12V, 15V, 24V (model dependent)
- Rated Current: 600mA at 3.3V, 400mA at 5V, 222mA at 9V, 167mA at 12V, 133mA at 15V, 83mA at 24V
- Ripple & Noise (max): 150mVp-p for most models, 200mVp-p for 15V and 24V
- Voltage Tolerance: ±2.5% to ±25% depending on model
- Line Regulation: ≤0.5%
- Load Regulation: ≤0.5%
- Efficiency (Typ): Up to 77%
- No-Load Power Consumption: <0.075W
- Operating Temperature: -30°C to +85°C
- Humidity: 20-90% RH non-condensing
- Vibration Resistance: Up to 5G
- Isolation: 3KV AC between input and output
- Certifications: UL60950-1, TUV EN60950-1, optional IEC60601-1, EN60335-1
- EMC: EN55022 Class B, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11 with criteria A
- Dimensions: PCB mounting style 33.7*22.2*15mm, SMD style 33.7*22.2*46mm
- Warranty: 3 years
Buy the Mean Well IRM-02 – Reliable Power Supply for Industrial Applications
Upgrade your electronic or industrial automation projects with the IRM-02 power supply. Offering universal input voltage, high efficiency up to 77%, and low no-load power consumption, this compact module ensures reliable operation even in vibration-prone environments. Its fully-potted silicone case provides excellent thermal management, dust, and moisture resistance. Meets essential safety and EMC standards, making it perfect for factory automation, handheld devices, and industrial equipment. Order online today and get a high-quality power solution with a 3-year warranty for peace of mind.
Order your Mean Well IRM-02 power supply today and ensure your industrial automation projects benefit from dependable, efficient power conversion.
