MEAN WELL RPS6515 Medical Power Supply

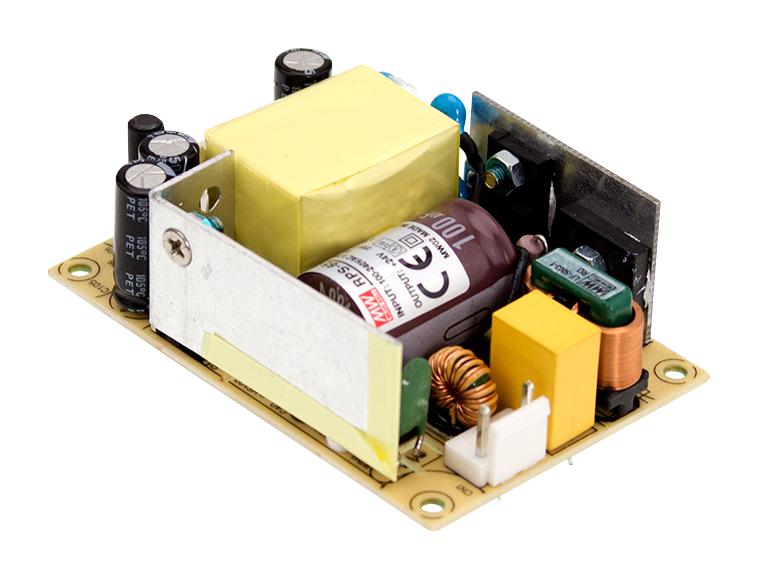

RPS-65 is a compact, high-efficiency medical power supply delivering 65W output with a small 3x2 inch footprint. It accepts universal AC input (80-264VAC), providing multiple output voltages from 3.3V to 48V, suitable for medical devices including hemodialysis machines, sleep apnea devices, and medical monitors. Conforming to international safety standards with low leakage current under 100A, it features over-current, over-voltage, and short-circuit protections. Its high efficiency up to 91%, low no-load power consumption, and ability to operate at temperatures from -30°C to +70°C, make it ideal for BF-rated patient contact systems and medical applications requiring reliable, safe power sources.
MEAN WELL RPS6515 Medical Power Supply Specifications:
- Power Rating: 65W
- Output Voltage Range: 3.3V to 48V
- Output Current: Up to 10A depending on model
- Input Voltage: 80-264VAC
- Efficiency: Up to 91%
- Leakage Current: Less than 100A
- Operating Temperature: -30°C to +70°C
- Dimensions: 76.2mm x 50.8mm x 24mm (3" x 2" x 0.945")
- Protection: Short circuit, Overload, Over voltage
- MTBF: 959.1K hrs
- Isolation: 2xMOPP (Means of Patient Contact)
- Compliance: IEC60601-1, EN60601-1, EN55011, EN61000-3-2/4
- Cooling: Free air convection
- Operating Altitude: Up to 4000 meters
Buy the Buy Mean Well RPS-65 Part Number RPS6515 Online
Secure your medical device power needs with the RPS-65 from Mean Well. This reliable 65W power supply offers high efficiency up to 91%, low no-load energy consumption, and universal input voltage. Designed for medical applications, it guarantees safety with low leakage current, multiple protections, and compliance with international standards. Its compact size and wide operating temperature make it ideal for critical medical equipment like monitors, sleep apnea devices, and hemodialysis systems. Order online today and ensure your devices perform safely and efficiently.
Buy Mean Well RPS-65 65W medical power supply now and experience unmatched reliability and performance for your critical medical systems.
Frequently Asked Questions
Where can I buy MEAN WELL RPS6515?
You can click on the BUY or RFQ button to purchase RPS6515 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS6515?
You can download the RPS6515 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS6515?
MEAN WELL
