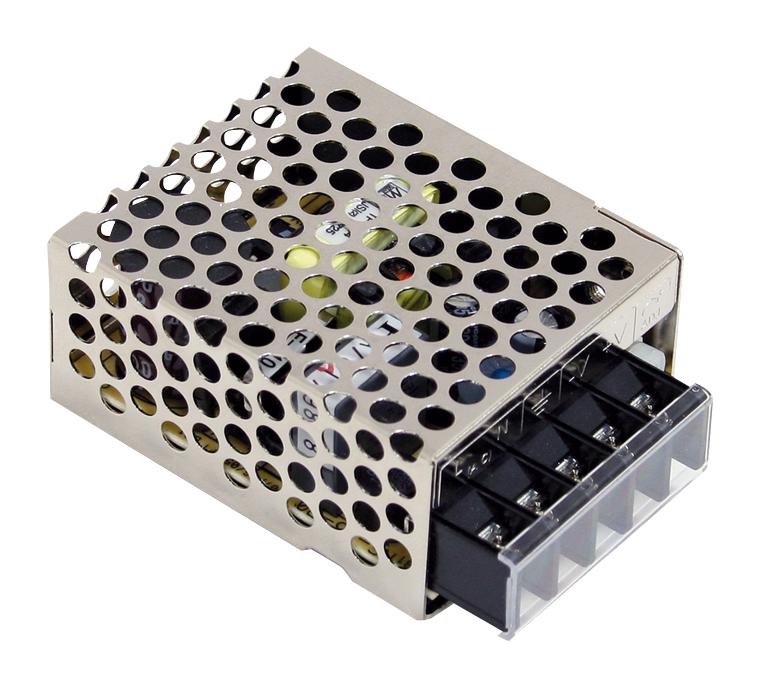

MEAN WELL RS1512 Switching Power Supply
The 15W single output switching power supply offers reliable performance with protections against short circuit, overload, over voltage, and over temperature. Its high efficiency and long lifespan are supported by a 105°C long-life electrolytic capacitor. Suitable for various applications, it features universal AC input range (85-264VAC), withstands 300VAC surge input, and operates up to 70°C. Designed for safety with UL and CE standards, it encompasses multiple models with outputs from 3.3V to 48V, delivering rated power and ripple noise control for stable operation in automation, control systems, and electronic devices.
MEAN WELL RS1512 Switching Power Supply Specifications:
- Input Voltage Range: 85-264VAC / 120-370VDC, 47-63Hz
- Output Power: 15W, models include 3.3V/3A, 5V/3A, 12V/1.3A, 18V/1A, 24V/0.625A, 48V/0.313A
- Ripple & Noise: 80mVp-p to 200mVp-p depending on model
- Voltage Tolerance: ±3%, ±4.2%, ±1.0%, ±1.0%, ±1.0%, ±1.0% for various models
- Line Regulation: 0.5% to 2.0% depending on model
- Load Regulation: 2.0% to 2.5% depending on model
- Efficiency: 72% to 82%, high performance for energy savings
- Operating Temperature: -20°C to +70°C, derating above 50°C
- Protections: Short circuit, overload, over voltage, and over temperature
- Leads conform to safety and EMC standards such as UL, EN, and CE
- Size: Approximately 62.5 x 51 x 28 mm, suitable for space-constrained installations
Buy the Meanwell Series RS Power Supply: 15W 3.3V-48V
Order the versatile and efficient switching power supply from the RS-15 series online today. Designed for durability and safety, it offers multiple output options with high power stability and protections. Ideal for industrial automation, control systems, and electronic devices, this power supply ensures reliable operation in harsh environments with operating temperatures up to 70°C. Quick and secure online purchase means you get top-tier performance and peace of mind, backed by quality standards and warranty coverage.
Buy Meanwell RS-15 series switching power supply now and experience unmatched reliability, efficiency, and safety in your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MEAN WELL RS1512?
You can click on the BUY or RFQ button to purchase RS1512 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RS1512?
You can download the RS1512 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RS1512?
MEAN WELL
