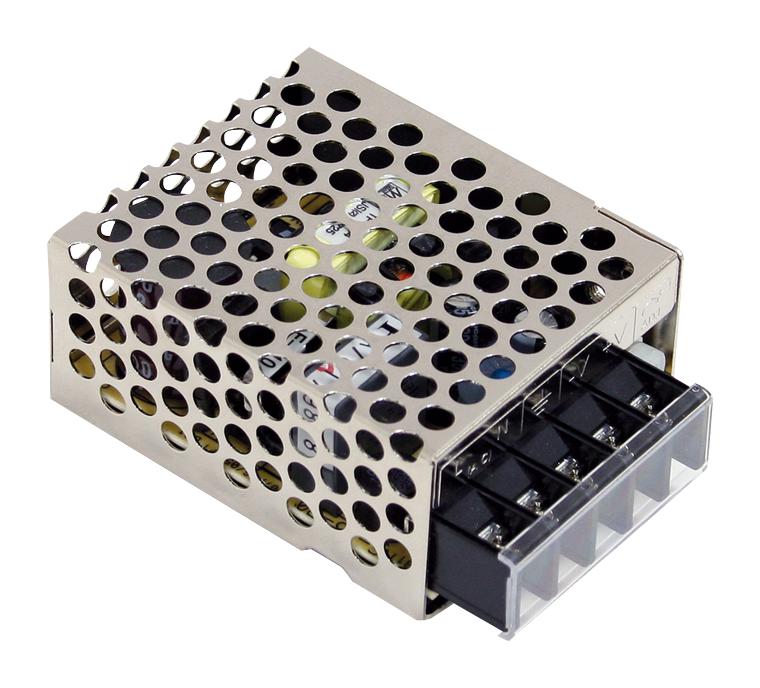

MEAN WELL RS1533 Switching Power Supply
The RS-15 series is a 15W single output switching power supply designed for reliable performance in various applications. It features universal AC input, high efficiency up to 82%, and protections including short circuit, overload, over voltage, and over temperature. The power supply is built with durable components, including 105°C electrolytic capacitors, and supports an operating temperature up to 70°C. Compact and lightweight, it offers excellent electrical insulation, vibration resistance, and compliance with safety standards such as UL60950-1 and TUV EN60950-1. Ideal for industrial, automation, and electronic projects requiring stable DC power supply.
MEAN WELL RS1533 Switching Power Supply Specifications:
- Input Voltage: 85~264VAC, 120~370VDC
- Output Power: 15W
- Output Voltage Range: 4.75~5V, 10.8~13.2V, 13.5~16.5V, 22~27.8V, 43.2~52.8V
- Rated Current: 3A (5V), 1.38A (12V), 1A (15V), 0.625A (24V), 0.313A (48V)
- Ripple & Noise: 80~200mVp-p depending on model
- Efficiency: 71% to 82% depending on model
- Dimensions: 62.5mm x 51mm x 28mm
- Operating Temperature: -20°C to +70°C
- Vibration Resistance: 5G, 10~500Hz
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Isolation Voltage: 3KVAC input to output
- Certifications: UL60950-1, TUV EN60950-1
- MTBF: 1,608,800 hours (minimum)
Buy the Mean Well Series RS-15 Power Supply: RS1533
Purchase the reliable and efficient Mean Well RS1533 power supply online today. Designed with high-quality components, it provides stable voltage output, overvoltage and short circuit protection, and operates effectively up to 70°C. Its compact size makes it suitable for industrial automation, electronic projects, and control systems. With certifications such as UL and TUV, this 15W power supply ensures safety, durability, and consistent performance for demanding environments. Order now to secure a high-quality power solution for your equipment needs.
Get Mean Well RS1533 today—built for robust performance and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL RS1533?
You can click on the BUY or RFQ button to purchase RS1533 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RS1533?
You can download the RS1533 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RS1533?
MEAN WELL
