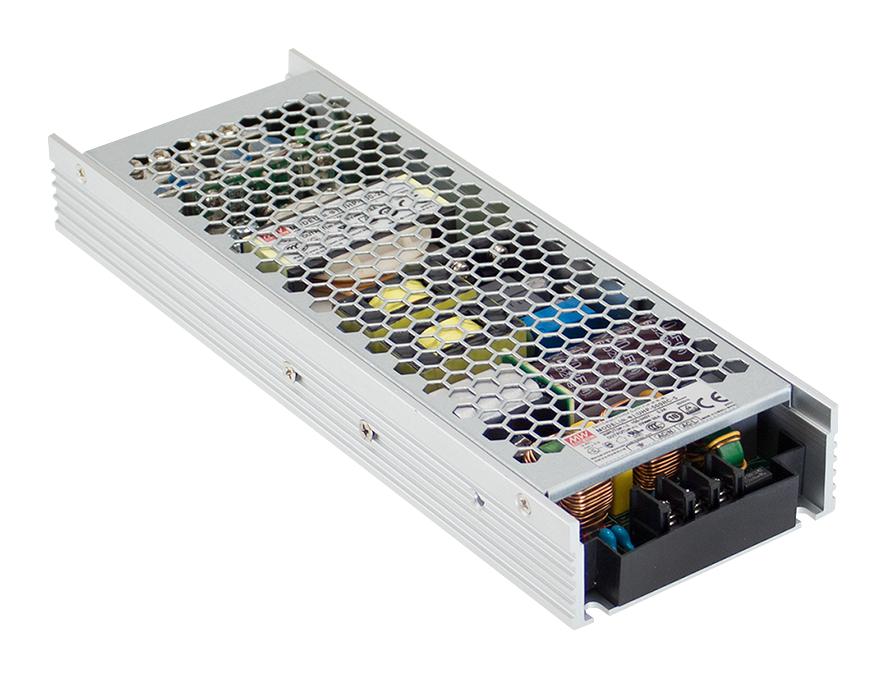

MEAN WELL UHP500R42 Industrial Power Supply
The UHP-500 series is a 500W slim power supply with a low profile of 31mm, suitable for industrial automation, control systems, and electronic equipment. It features high efficiency up to 95%, fanless convection cooling, and complete protections against short circuit, overload, over voltage, and overheating. With an operating temperature range from -20°C to 70°C, it supports input voltages from 90V to 264VAC and delivers various output voltages including 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V, making it ideal for demanding industrial applications such as machinery, control systems, and LED displays.
MEAN WELL UHP500R42 Industrial Power Supply Specifications:
- Power: 500W
- Input Voltage: 90-264VAC, 47-63Hz
- Output Voltages: 4.2V, 5V, 12V, 15V, 24V, 36V, 48V
- Output Current: 80A (4.2V), 80A (5V), 44.7A (12V), 33.44A (15V), 20.9A (24V), 13.94A (36V), 10.45A (48V)
- Ripple & Noise: 200-360mVp-p
- Efficiency: up to 95%
- Operating Temperature: -20°C to +70°C
- Dimensions: 232mm x 81mm x 31mm
- Protection Features: Short circuit, Overload, Over voltage, Over temperature
- Altitude: Up to 5000 meters
- Certification: UL, TUV, EN60950-1, GB4943
- Housing: Slim, fanless convection design with aluminum mounting plate
- Reliability: MTBF 168,000 hours, 3-year warranty
Buy the MEAN WELL UHP-500 Reliable Industrial Power Supply for Industrial Applications
Choose the MEAN WELL UHP-500 series power supply for your industrial automation, control systems, or LED applications. With 500W power, high efficiency up to 95%, fanless convection cooling, and comprehensive protections, it guarantees reliable operation in harsh environments. Easy to install with aluminum mounting plates and compact design, this power supply supports a wide input voltage range of 90-264VAC, making it versatile for various industrial needs. Built for durability and safety, it’s the ideal choice for demanding industrial projects. Buy online now for fast delivery and dependable performance.
Order your MEAN WELL UHP-500 series power supply today and ensure reliable, efficient power for your industrial control and automation projects.
