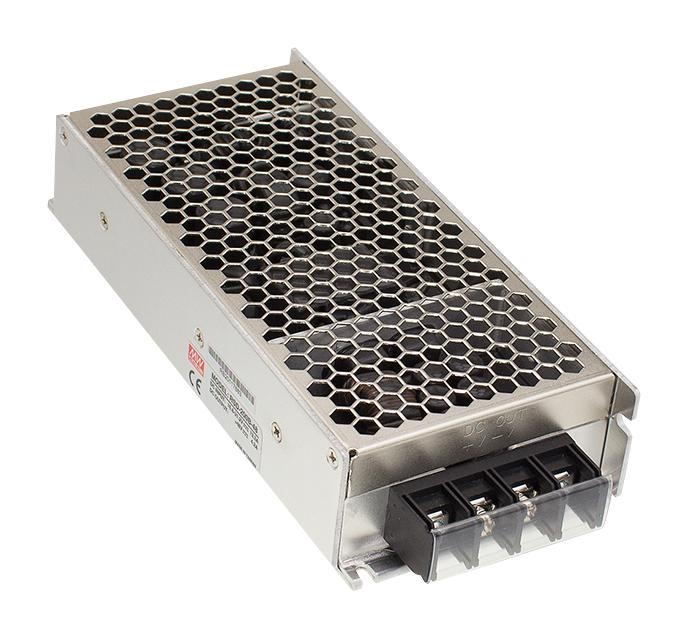

MEAN WELL RSD200C24 railway power converter
The RSD-200C-24 is a 200W railway grade single output DC-DC converter designed to meet EN50155 and EN45545-2 standards, providing reliable power in harsh environments. It features a wide input range (+30% to +40%), high efficiency (up to 91%), and comprehensive protections including short circuit, overload, over voltage, over temperature, and reverse polarity. Compact and lightweight with dimensions of 191×86×40mm, the unit is suitable for railway applications requiring high reliability, thermal management, and safety compliance, with a built-in LED indicator for operational status.
MEAN WELL RSD200C24 railway power converter Specifications:
- Model: RSD-200C-24
- Power Output: 200W
- Input Voltage Range: +30% to +40% of rated nominal voltage (24V)
- Input Voltage: 20V to 33.6VDC
- Rated Current: 4A
- Input Reverse Polarity Protection: MOSFET in series
- Fuse Type and Rating: Time-Lag, 10A, 250V
- Peak Inrush Current: 45A at 24VDC
- Efficiency (Typ.): 91%
- Output Voltage: 24V
- Output Current: 8.44A
- Ripple & Noise: Up to 150mVp-p
- Line Regulation: ±2% to ±5%
- Load Regulation: ±10% to ±4.0%
- Setup / Rise Time: 800ms / 50ms
- Hold-up Time: 70ms at full load
- Protection: Overvoltage, Overtemperature, Short circuit, Overload
- Isolation Voltage: 4000VDC
- Operating Temperature: -40°C to +55°C
- Storage Temperature: -40°C to +85°C
- Vibration: 10-500Hz, 5G
- Dimensions: 191×86×40mm
- Safety Standards: IEC80950-1, EN50155, EN45545-2
- MTBF: 218.2K hours
- Humidity: 5-95% RH non-condensing
Buy the Mean Well RSD-200C-24 – Reliable Railway Power Supply for Industrial Applications
Purchase the high-quality Mean Well RSD-200C-24 railway power converter online today. Designed for harsh environments, this 200W unit features EN50155 and EN45545-2 compliance, wide input range, advanced protections, and efficient operation. Its compact size and reliable performance make it ideal for railway and industrial applications, providing stable voltage output with minimal ripple. Enjoy quick shipping, excellent customer support, and confidence in a proven power solution tailored for demanding environments. Upgrade your system now with this trusted component.
Order your Mean Well Series RSD-200C-24 railway-grade power converter today and ensure your industrial projects benefit from dependable, high-performance power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL RSD200C24?
You can click on the BUY or RFQ button to purchase RSD200C24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD200C24?
You can download the RSD200C24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD200C24?
MEAN WELL
