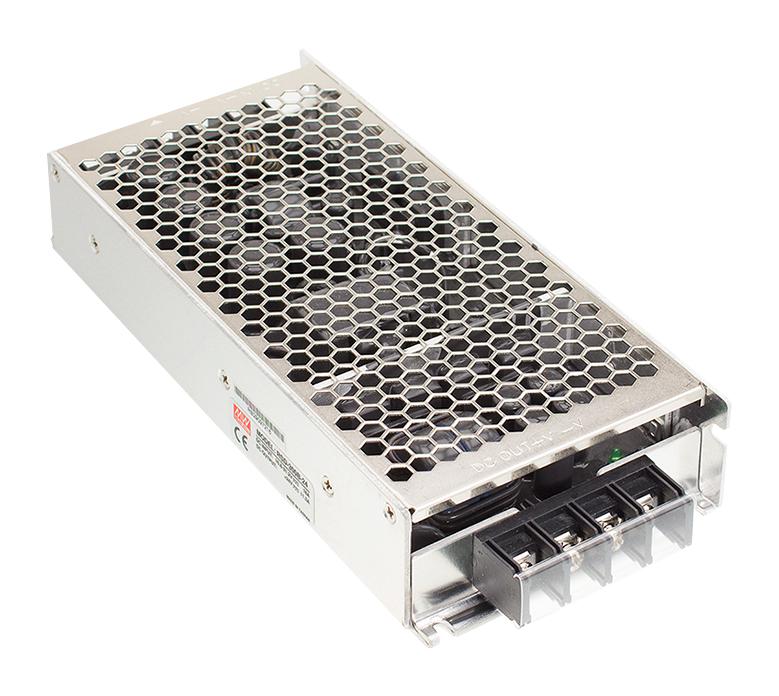

MEAN WELL RSD300B24 Railway Power Converter
The RSD-300 series is a high-reliability railway-grade single output DC-DC converter designed to meet EN50155 and EN45545-2 standards. It features a 2:1 wide input range, protection against short circuit, overload, over voltage, over temperature, and input reverse polarity. With 4000VDC isolation, cooling by free air convection, and a low profile of 40mm, it ensures optimal thermal performance. Built with long-life electrolytic capacitors, a built-in constant current limiting circuit, LED indicator, full load burn-in testing, and a 3-year warranty, it guarantees safety and durability for demanding rail applications.
MEAN WELL RSD300B24 Railway Power Converter Specifications:
- Model: RSD-300B-24, RSD-300D-24, RSD-300F-24, etc.
- Output Power: 210W to 300W depending on model
- Input Voltage Range: +30% to -40% of rated input voltage
- Input / Output Isolation: 4000VDC
- Protection: Short circuit, Overload, Over voltage, Over temperature, Input reverse polarity
- Efficiency: 89% to 92% depending on model
- Ripple & Noise: 100mVp-p to 180mVp-p measured at 20MHz bandwidth
- Voltage Tolerance: ±2%
- Line Regulation: 0.2% to 0.5%
- Load Regulation: 1.0%
- Working Temperature: -40°C to +70°C with derating
- Storage Temperature: -40°C to +85°C
- Humidity: 5% to 95% RH non-condensing
- Vibration: IEC61373 compliant, 10-500Hz, 5G
- Safety Standards: IEC60950-1, EN50155, EN45545-2
- MTBF: 130,700 hours
- Dimensions: 216*97*40mm
- Weight: 1.19kg per unit
Buy the MEAN WELL Series Railway Power Converter: RSD-300-24
Experience reliable and durable railway power conversion with the MEAN WELL RSD-300 series. Designed to comply with EN50155 and EN45545-2 standards, it features wide input range, high efficiency, multiple protections, and long-life electrolytic capacitors. Its compact 1U low profile ensures easy installation in demanding environments. Ideal for industrial automation and transportation applications, this converter guarantees safety, stability, and longevity. Purchase online today to enjoy fast delivery, excellent support, and a product built for harsh conditions.
Buy MEAN WELL RSD-300-24 now and experience unmatched reliability and performance in railway power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL RSD300B24?
You can click on the BUY or RFQ button to purchase RSD300B24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD300B24?
You can download the RSD300B24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD300B24?
MEAN WELL
