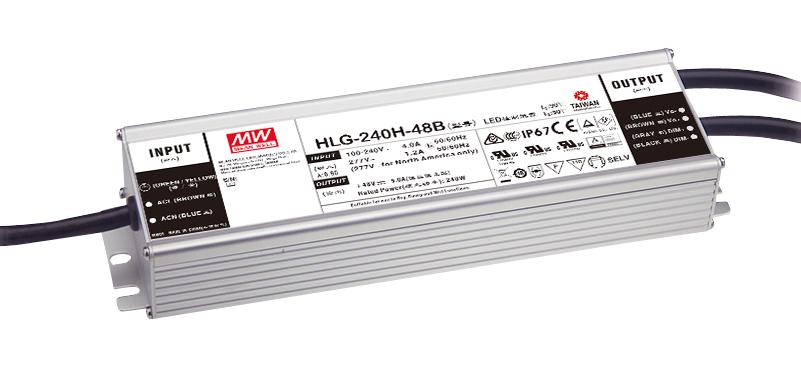

MEAN WELL HLG240H42B LED Driver
The HLG-240H series is a 240W AC/DC LED driver with dual constant voltage and constant current modes, suitable for indoor and outdoor lighting. Operating from 90 to 305VAC, it features models with voltage ratings between 12V and 54V, high efficiency up to 93.5%, and a fanless design for reliable operation from -40°C to +90°C. Its metal housing with IP67/IP65 ratings makes it ideal for street lighting, high-bay, parking, greenhouse, and fishing lamps. Function options include dimming, adjustable output, and hazardous location compatibility, with a typical lifetime over 62,000 hours and a 7-year warranty.
MEAN WELL HLG240H42B LED Driver Specifications:
- Rated Power: 240W
- Input Voltage Range: 90 ~ 305VAC
- Operating Temperature: -40°C to +90°C
- Efficiency: Up to 93.5%
- Output Voltage Options: 12V, 15V, 20V, 24V, 30V, 36V, 42V, 48V, 54V
- Rated Current: 16A (12V), 14.5A (15V), 12A (20V), 10A (24V), 8A (30V), 6.7A (36V), 5.72A (42V), 5A (48V), 4.45A (54V)
- Ripple & Noise: Max. 150-350mVp-p depending on model
- Ingress Protection: IP67/IP65, for indoor or outdoor use
- Function Options: Output adjustable via potentiometer, 3-in-1 dimming (1-10VDC, PWM, resistance)
- Lifetime: >62,000 hours at Ta ≤75°C
- Warranty: 7 years
- Safety Standards: UL, CSA, EN/AS, BIS, EAC, KC, and others
- Mechanical Size: Approximately 244.2mm x 68mm x 38.8mm
- Certifications: UL, CUL, CE, CB, RoHS compliant
Buy the Buy Mean Well HLG-240H Series LED Driver Part Number HLG240H42B Online
Purchase the reliable and high-efficiency 240W LED driver online today. Designed for versatile indoor and outdoor applications, it features adjustable voltage, dimming options, IP67/IP65 ratings, and a lifespan exceeding 62,000 hours. Ideal for streetlighting, high-bay, parking lots, and greenhouse lighting, this driver guarantees durability and safety with internationally recognized certifications. With a straightforward ordering process, easily enhance your lighting system’s performance and dependability by choosing this advanced, eco-friendly driver solution from a trusted supplier.
Order your Mean Well HLG-240H42B series LED driver today and ensure reliable, high-efficiency outdoor lighting with adjustable output and long lifespan.
Frequently Asked Questions
Where can I buy MEAN WELL HLG240H42B?
You can click on the BUY or RFQ button to purchase HLG240H42B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG240H42B?
You can download the HLG240H42B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG240H42B?
MEAN WELL
