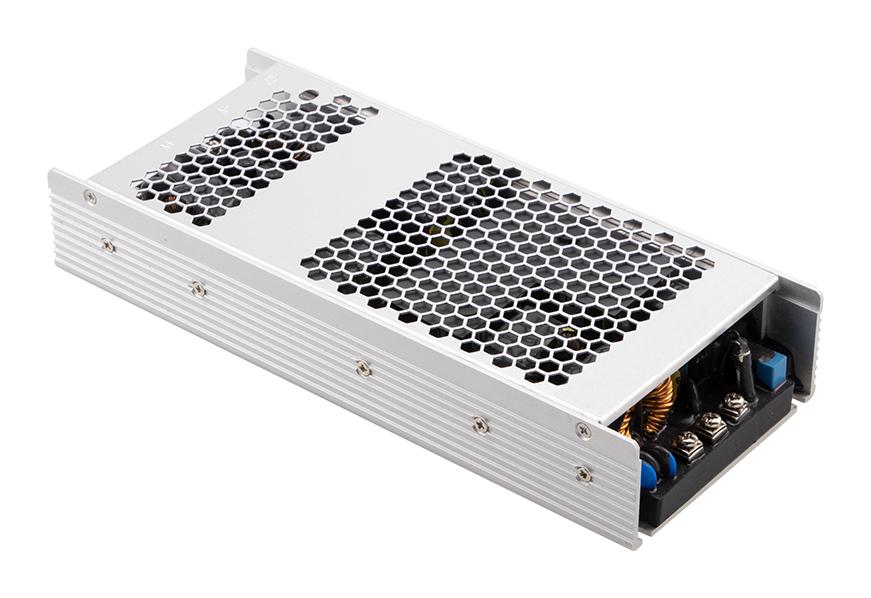

MEAN WELL RSD500C48 Railway DC-DC Converter
The RSD-500 series is a 500W reliable railway enclosed DC-DC converter compliant with EN50155 and EN45545-2 standards. It features a fanless, semi-potted design with free air convection cooling, operating temperature from -40°C to +80°C, and a compact 41mm low profile. Suitable for rail and transportation systems, it offers multiple input ranges, adjustable output voltages, robust protections, 4KVdc isolation, high vibration resistance, and can operate at altitudes up to 5000 meters. Ideal for harsh environments, it supports various output voltages and ensures reliable power conversion with high EMC performance.
MEAN WELL RSD500C48 Railway DC-DC Converter Specifications:
- Power: 500W
- Input Range: 16.8~33.6V, 33.6~67.2V, 67.2~154V
- Input Voltage Tolerance: +1.0% to +10%
- Output Voltages: 12V, 24V, 48V
- Rated Current: 35A for 12V, 17.5A for 24V, 8.8A for 48V (B series); similar low currents for C and D series
- Ripple & Noise: 100mVp-p to 150mVp-p
- Efficiency: up to 93%
- Operating Temperature: -40°C to +80°C
- Isolation Voltage: 4KVdc (I/O), 2.5KVdc (FG to others)
- Dimensions: 237mm x 100mm x 44mm
- Protection: Short circuit, Overload (105~135%), Over voltage (115~140%), Over temperature
- Humidity: 5% to 95% RH non-condensing
- Vibration & Shock Resistance: compliant with IEC61373
- Certifications: UL62368-1, IEC 62368-1, EN45545-2, EN50155
- MTBF: 277.9K hours (Telcordia)
Buy the Mean Well Series RSD Reliable Railway DC-DC Converter: RSD500C48
Secure your power solutions with the high-performance railway DC-DC converter. Featuring wide input ranges, adjustable outputs, robust protections, and high efficiency, it is designed to operate reliably in harsh environments such as high vibration, dust, and extreme temperatures. Compact and fanless, this converter ensures stable power conversion for rail, tram, and industrial systems. With a 3-year warranty, quick online purchase will provide you with a dependable, safe, and efficient power supply essential for critical applications in transportation and automation industries.
Buy Mean Well RSD500C48 now and experience unmatched reliability and performance in harsh transportation environments.
Frequently Asked Questions
Where can I buy MEAN WELL RSD500C48?
You can click on the BUY or RFQ button to purchase RSD500C48 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSD500C48?
You can download the RSD500C48 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSD500C48?
MEAN WELL
