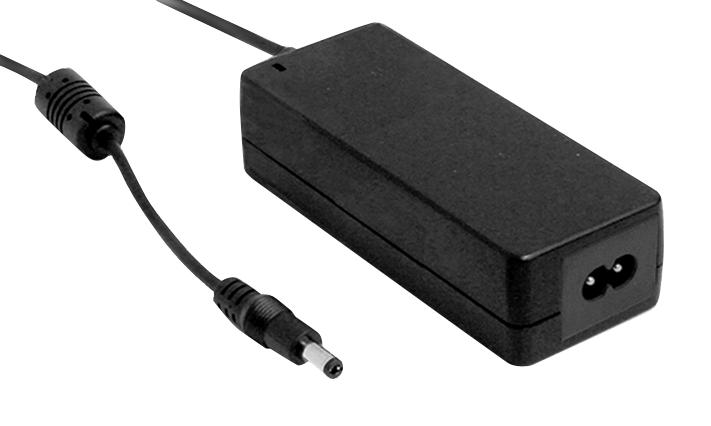

MEAN WELL GSM90B19P1M Medical Power Adapter
GSM90B is a highly reliable, 90W medical power adapter designed for various medical devices, including clinical workstations and imaging equipment. It features an IEC320-C8 inlet, universal input voltage range of 80VAC–264VAC, and offers output voltages from 12V to 48V. With efficiencies up to 91%, ultra-low leakage current (<100uA), and full compliance with international medical safety standards (2*MOPP), this adapter ensures safe operation for patient-contact equipment. Its fanless, enclosed plastic case makes it suitable for clean environments and portable medical applications.
MEAN WELL GSM90B19P1M Medical Power Adapter Specifications:
- Input Voltage: 80VAC–264VAC, 47–63Hz
- Output Voltages: 12V, 15V, 19V, 24V, 48V
- Rated Power: 80W–90W depending on model
- Efficiency: Up to 91%
- Leakage Current: <100uA
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Working Temperature: -30°C to +60°C
- Case Material: Flame-retardant plastic, 94V-0
- Dimensions: 145×60×32 mm
- Safety Certified: UL60601-1, EN60601-1, TUV, Compliant with international medical standards
- Power Factor: >0.91 at 230VAC, >0.95 at 115VAC
- Isolation: 2xMOPP between primary and secondary
- Built-in active PFC
- No load power consumption: <0.15W
- Wire: IEC320-C8 inlet, optional plug types available
- Warranty: 3 years
Buy the Mean Well Series GSM90B Medical Power Adapter: GSM90B19P1M
Purchase your high-reliability medical power adapter GSM90B19P1M online today. Designed for medical devices with universal input, high efficiency up to 91%, and ultra-low leakage current, this adapter complies with global safety standards. Its fanless, enclosed plastic case ensures safe operation in clinical environments. Featuring protections for over voltage, overload, and temperature, it offers dependable performance for portable and stationary medical equipment. Enjoy fast delivery and dedicated customer support when buying this trusted, certified power supply online now.
Order your Mean Well Series GSM90B19P1M medical power adapter today and ensure reliable, safe power for your critical medical equipment.
