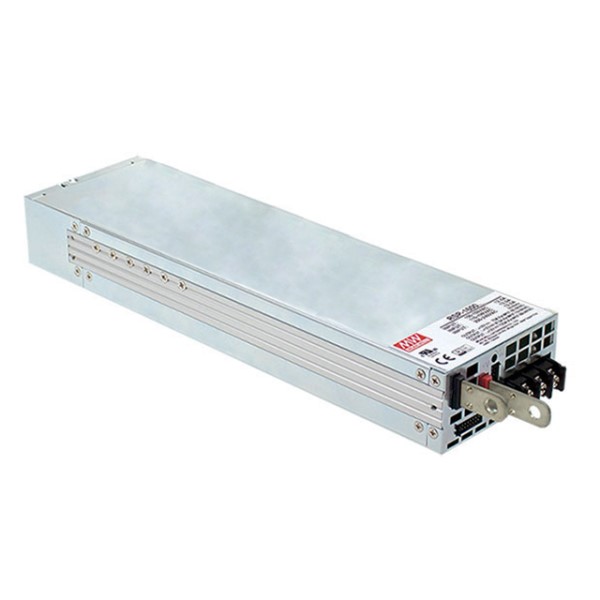

MEAN WELL RSP160027 1600W Single Output Power Supply
The MEAN WELL RSP-1600 series is a 1600W single output enclosed AC/DC power supply suitable for a wide range of industrial applications, including factory control, testing equipment, and laser machinery. It boasts a universal AC input voltage range (90-264VAC), high efficiency (up to 93%), and a compact design. The RSP-1600-27 model provides 27VDC output with a rated current of 59A. It incorporates features like active PFC, remote on/off control, and comprehensive protection mechanisms, ensuring reliable and efficient power delivery. This power supply is designed for demanding environments and offers excellent design flexibility.
MEAN WELL RSP160027 1600W Single Output Power Supply Specifications:
- Series: RSP - 1600
- Output Power: 1500W
- Input Voltage: 90 ~ 264VAC; 127 ~ 370VDC
- Input Frequency: 47 ~ 63Hz
- Output Voltage: 27VDC
- Rated Current: 59A
- Voltage Adjustment Range: 26.5 ~ 33.5V
- Line Regulation: ±1.0%
- Load Regulation: ±1.0%
- Ripple & Noise: 150mVp-p
- Efficiency: 89%
- Protection: Short Circuit, Overload, Over Voltage, Over Temperature
- Dimensions: 300*85*41mm (L*W*H)
- Weight: 2.1Kg
- Communication Protocol Options: None, PMBus, CANBus (by request)
- Altitude Derating: 3.5°C/1000m with fanless models; 5°C/1000m with fan models
Buy the RSP-1600-27 MEAN WELL 1600W Single Output Power Supply | myMectronic
Purchase the MEAN WELL RSP-1600-27 power supply securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL RSP160027?
You can click on the BUY or RFQ button to purchase RSP160027 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP160027?
You can download the RSP160027 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP160027?
MEAN WELL
