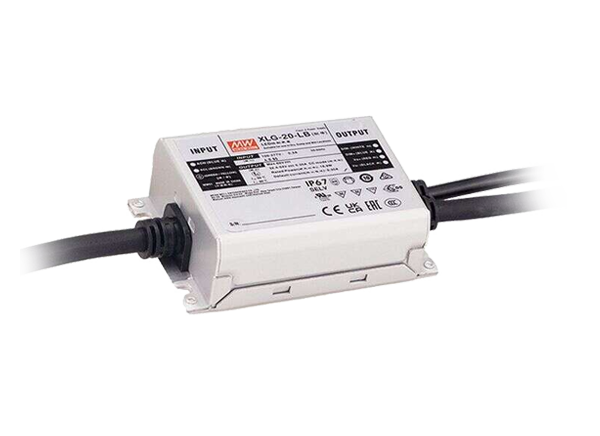

MEAN WELL XLG20H 21W LED Driver
The MEAN WELL XLG-20 series is a 21W AC/DC LED driver designed for constant current mode output. Operating within a wide input range of 90-305VAC, this driver offers high efficiency (up to 89%) and a wide operating temperature range of -40℃ to +80℃. Its metal housing and IP67 ingress protection make it suitable for both indoor and outdoor installations. Equipped with various dimming methodologies, the XLG-20 series provides design flexibility for LED lighting systems. It complies with IEC61347/GB7000.1 -2015 and UL8750 safety regulations, ensuring user and luminaire system safety. Applications include street lighting, architectural lighting, low-bay lighting, floodlight lighting, and industrial lighting.
MEAN WELL XLG20H 21W LED Driver Specifications:
- Output Voltage Range: 25.2 ~ 42V
- Rated Power: 21W
- Rated Current: 350mA
- Output Current Ripple: < 20%
- Line Regulation: ±3%
- No Load Power Consumption: <0.5W
- Efficiency: 89%
- Input Voltage Range: 90 ~ 305VAC
- Power Factor: ≧0.97/115VAC, ≧0.95/230VAC, ≧0.91/277VAC
- Total Harmonic Distortion: < 20%
- Inrush Current: 500ms, 150ms/115VAC, 230VAC
- Leakage Current: 0.75mA / 277VAC
- Working Temperature: -40 ~ +80℃
- Working Humidity: 20 ~ 95% RH non-condensing
- Storage Temperature: -40 ~ +80℃
- Temp. Coefficient: ±0.03%/℃(0 ~ 60℃)
- Vibration: 10 ~ 500Hz, 5G 12min./1cycle
- MTBF: 5721.2K hrs min. Telcordia SR-332
- Dimension: 95*63*30mm (L*W*H)
- Withstand Voltage: I/P-O/P:3.75KVAC, I/P-FG:2.0KVAC, O/P-FG:1.5KVAC
- Isolation Resistance: 100M Ohms / 500VDC
- Safety Standards: UL8750, CSA C22.2 No. 250.13-12, ENEC, IEC BS EN/EN61347-1, AS/NZS BS EN/EN61347-2-13
- IP Rating: IP67
- Constant Current Region: 60V
Buy the XLG-20-H MEAN WELL 21W LED Driver | myMectronic
Purchase the MEAN WELL XLG-20-H LED Driver securely and reliably for your lighting projects.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL XLG20H?
You can click on the BUY or RFQ button to purchase XLG20H from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG20H?
You can download the XLG20H datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG20H?
MEAN WELL
