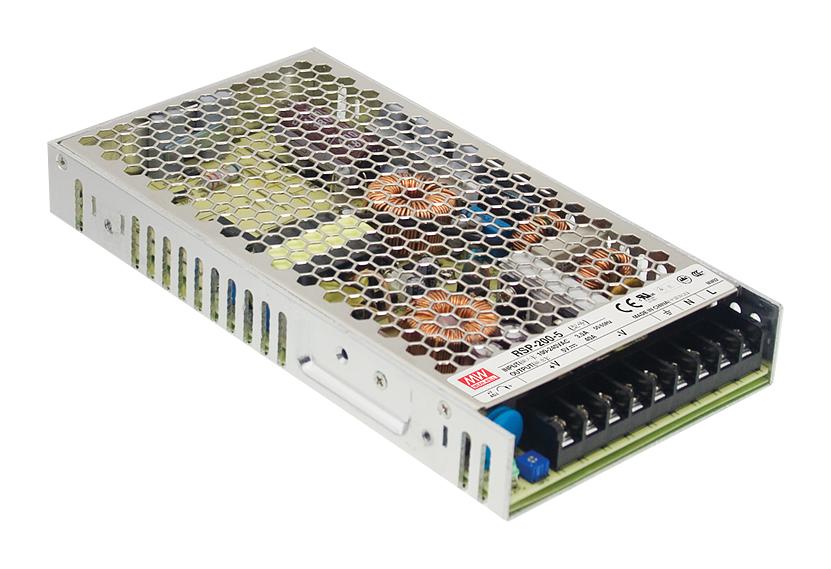

MEAN WELL RSP20033 Industrial Power Supply
The RSP-200 series is a compact, high-efficiency, single-output power supply designed for industrial automation and control applications. Featuring universal AC input, full-range capability, built-in active Power Factor Correction (PF>0.95), and protection against short circuit, overload, overvoltage, and over temperature. Its 1U low-profile construction (30mm) ensures easy integration into control panels, while the free air convection cooling provides reliable operation. Optional conformal coating enhances durability in harsh environments. An LED indicator confirms power status, and a 3-year warranty guarantees long-lasting performance, making it ideal for industrial automation systems.
MEAN WELL RSP20033 Industrial Power Supply Specifications:
- Input Voltage: 88~264VAC / 124~370VDC
- Output Power: 200W
- Output Voltage Range: 2.5V to 55V (model-dependent)
- Rated Current: 40A to 5.56A depending on model
- Efficiency: Up to 90%
- Power Factor: PF>0.95
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Cooling: Free air convection
- Dimensions: 215mm x 115mm x 30mm
- Operating Temperature: -30°C to +70°C
- Humidity: 20% to 90% RH non-condensing
- Certification: UL60950-1, TUV EN60950-1, CCC GB4943
- MTBF: 224,500 hours
Buy the Buy Mean Well RSP-200 Series Power Supply Part Number RSP20033 Online
Purchase the reliable and high-efficiency industrial power supply online. The RSP-200 series offers universal input, active PFC, protective features, and a low-profile design, making it ideal for automation, control systems, and manufacturing applications. With a robust construction, optional conformal coating, and a 3-year warranty, this power supply ensures continuous operation even in harsh environments. Upgrade your automation system today to benefit from top-tier performance, durability, and easy installation with our trusted online purchasing options.
Get Mean Well RSP-200 series power supply today—built for precision, efficiency, and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy MEAN WELL RSP20033?
You can click on the BUY or RFQ button to purchase RSP20033 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP20033?
You can download the RSP20033 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP20033?
MEAN WELL
