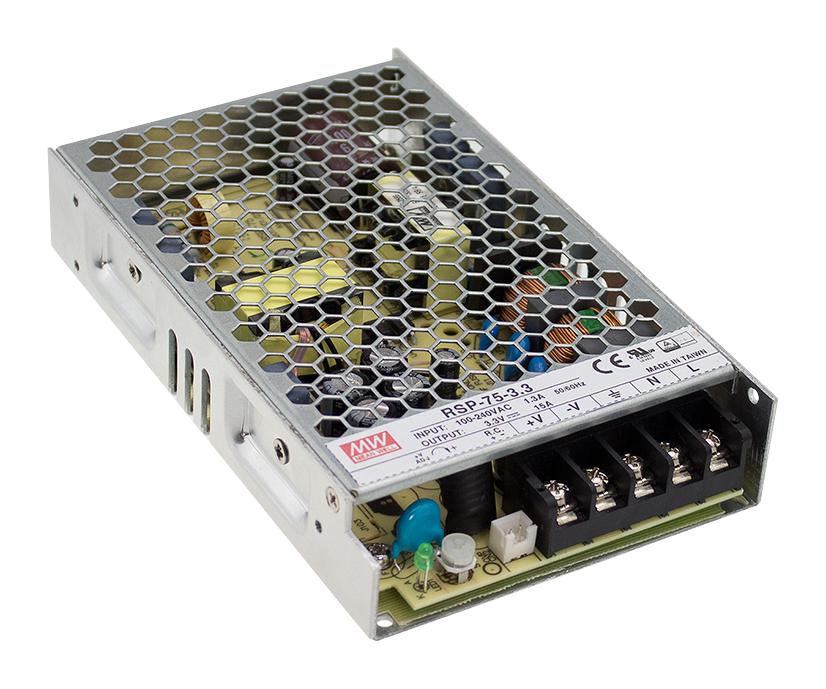

MEAN WELL RSP7548 Industrial Power Supply
The RSP-75 series is a 75W single output power supply with active PFC, universal AC input, and built-in protections including short circuit, overload, over-voltage, and over-temperature. It features a compact 1U low-profile design, remote on-off control, LED indicator, and high efficiency up to 89%. Suitable for industrial automation, control systems, and equipment requiring reliable, efficient power. It undergoes burn-in testing, has a three-year warranty, and complies with UL, TUV, EN standards for safety and EMC. The power supply operates from -25°C to +70°C and supports a broad input voltage range.
MEAN WELL RSP7548 Industrial Power Supply Specifications:
- Power: 75W
- Input Voltage: 85-264VAC, 120-370VDC
- Output Voltage Range: 3.3V to 48V models
- Maximum Output Current: 15A for 3.3V, 15A for 5V, 10A for 12V, etc.
- Ripple & Noise: 80-420mVp-p (model dependent)
- Efficiency: up to 89%
- Dimensions: 159mm x 97mm x 30mm
- Protections: Short circuit, overload, over-voltage, over-temperature
- Operating Temperature: -25°C to +70°C
- Cooling: Free air convection
- Power Factor: >0.93 at 230VAC, >0.98 at 115VAC
- Certification: UL, TUV, EN61558, CCC
- Operating Humidity: 20%-90% RH non-condensing
- Storage Temperature: -40°C to +85°C
- Vibration Resistance: 10-500Hz, 2G
Buy the MW RSP-75-48 – Reliable Power Supply for Industrial Applications
Purchase the MW RSP-75 series power supply online today for reliable, high-efficiency power delivery ideal for industrial automation, control panels, and manufacturing equipment. This 75W power supply features active PFC, universal AC input, remote on-off control, and comprehensive protection functions including short circuit and over-temperature protection. Its small 1U form factor, high efficiency up to 89%, and compliance with safety standards ensure optimal performance and safety in demanding environments. Order now to enhance your industrial control systems with a durable, dependable power solution.
Get MW RSP-75-48 today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy MEAN WELL RSP7548?
You can click on the BUY or RFQ button to purchase RSP7548 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP7548?
You can download the RSP7548 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP7548?
MEAN WELL
