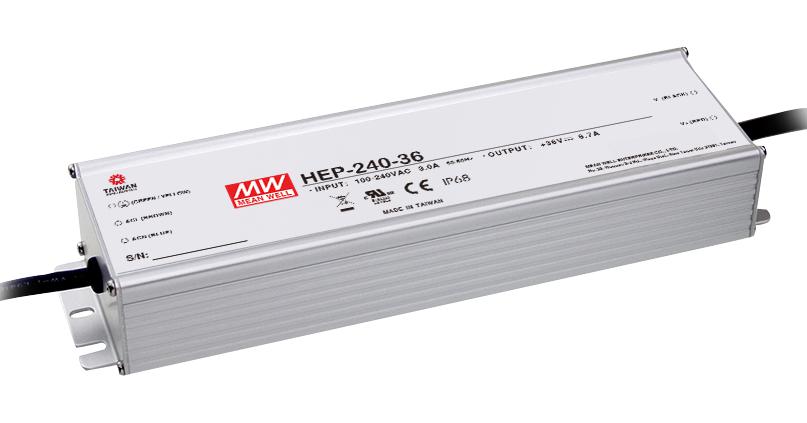

MEAN WELL HEP24015A Industrial Power Supply
HEP-240 is a 240W industrial power supply designed for harsh environments with dust, humidity, vibration, and high altitude. Encased in a robust aluminum case and fully potted with heat-conducted silicone, it achieves up to 93.5% efficiency and operates from -55°C to +70°C using free air convection. Suitable for outdoor telecommunications, signage, petroleum plants, and mining, it features protections against short circuits, overloads, overvoltage, and temperature, with a 6-year warranty. Its fanless design and high durability ensure long-term reliable operation in demanding applications.
MEAN WELL HEP24015A Industrial Power Supply Specifications:
- Model: HEP-240-12, HEP-240-15, HEP-240-24, HEP-240-36, HEP-240-48, HEP-240-54
- Input Voltage: 90~305VAC, 127~431VDC, 47~63Hz
- Output Power: 240W
- Output Voltage Range: 12V to 54V (adjustable 2.4V to 57V)
- Rated Current: 16A (12V), 15A (15V), 4.35A (24V), 3A (36V), 5A (48V), 4.45A (54V)
- Ripple & Noise: 150mVp-p to 350mVp-p depending on model
- Efficiency: Up to 93.5%
- Operating Temperature: -55°C to +70°C
- Protection: Short circuit, overload, overvoltage, overtemperature
- Enclosure: Aluminum case, optional IP68 rated model
- Vibration Resistance: 10G
- Surge Immunity: 6KV
- Dimensions: 244.2mm x 68mm x 38.8mm
- Warranty: 6 years
- Certifications: UL, CE, CB, cUL, EMC compliant
- Altitude: Up to 5000 meters
- Cooling: Fanless, convection cooled
Buy the Meanwell HEP-240 Ultra-High Efficiency Power Supply for Industrial Applications
Purchase the Meanwell HEP-240 industrial power supply online today for outstanding reliability, efficiency, and durability in demanding environments. Perfect for outdoor telecommunication, signage, petroleum facilities, and mining operations, this 240W unit offers wide temperature operation from -55°C to +70°C, protection against various faults, and compliance with industry standards. Its rugged aluminum case and fully potted design maximize heat transfer and protect internal components, ensuring stable operation. Buy now to benefit from a long-lasting, high-performance power solution suitable for critical industrial applications.
Get Meanwell HEP-240 today—built for precision, durability, and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy MEAN WELL HEP24015A?
You can click on the BUY or RFQ button to purchase HEP24015A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HEP24015A?
You can download the HEP24015A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HEP24015A?
MEAN WELL
