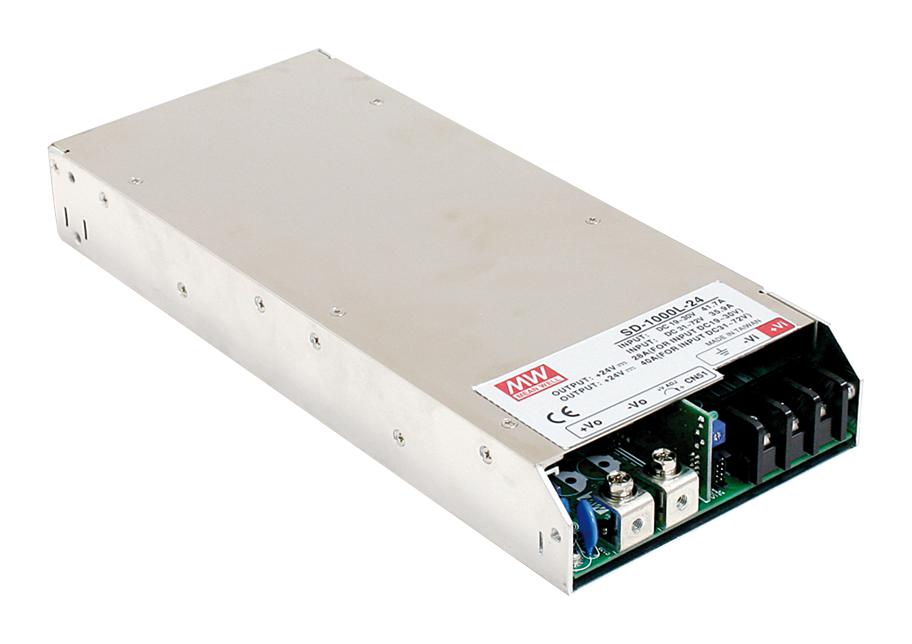

MEAN WELL SD1000L48 Industrial Power Supply
The SD-1000 series is a high-density, 1000W single output DC-DC converter featuring a low profile of 41mm, high efficiency up to 92%, and comprehensive protections including short circuit, overload, over voltage, and over temperature. It offers a built-in remote ON-OFF control, remote sense function, auxiliary 12V/0.25A output, and forced air cooling with a fan speed control. Suitable for industrial and automation applications, it is tested for safety standards and EMI compliance, ensuring reliable and efficient power conversion with a compact design.
MEAN WELL SD1000L48 Industrial Power Supply Specifications:
- Power Rating: 1000W
- Output Voltages: 12V, 24V, 48V (model specific)
- Rated Currents: 60A for 12V, 40A for 24V, 2A for 48V
- Input Voltage Range: 19~72VDC (model specific)
- Ripple & Noise (max): 150mVp-p for 12V, 450mVp-p for others
- Efficiency (Typ): Up to 92%
- Protection: Short circuit, overload, over voltage, over temperature
- Isolation Voltage: 2000VAC
- Dimensions: 295 x 427 x 41 mm
- Operating Temperature: -20°C to +60°C
- MTBF: 106.7K hours
- Certifications: IEC60950-1, CB approved
- Cooling: Forced air with fan speed control
- Remote ON/OFF control and remote sense function
- Auxiliary output: 12V, 0.25A
Buy the Mean Well Series SD-1000 1000W Power Supply: SD1000L48
Order the Mean Well SD1000L48 power supply online today to ensure your equipment operates with high reliability and efficiency. Designed with advanced protections, remote control capabilities, and a compact low profile, this 1000W power supply is perfect for industrial automation and other demanding applications. Its high efficiency of up to 92%, robust safety features, and easy mounting make it a dependable choice. Enjoy fast delivery and seamless online purchasing for your power needs, backed by quality and industry standards.
Get Mean Well SD1000L48 today—built for industrial reliability, efficient power conversion, and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL SD1000L48?
You can click on the BUY or RFQ button to purchase SD1000L48 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD1000L48?
You can download the SD1000L48 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD1000L48?
MEAN WELL
