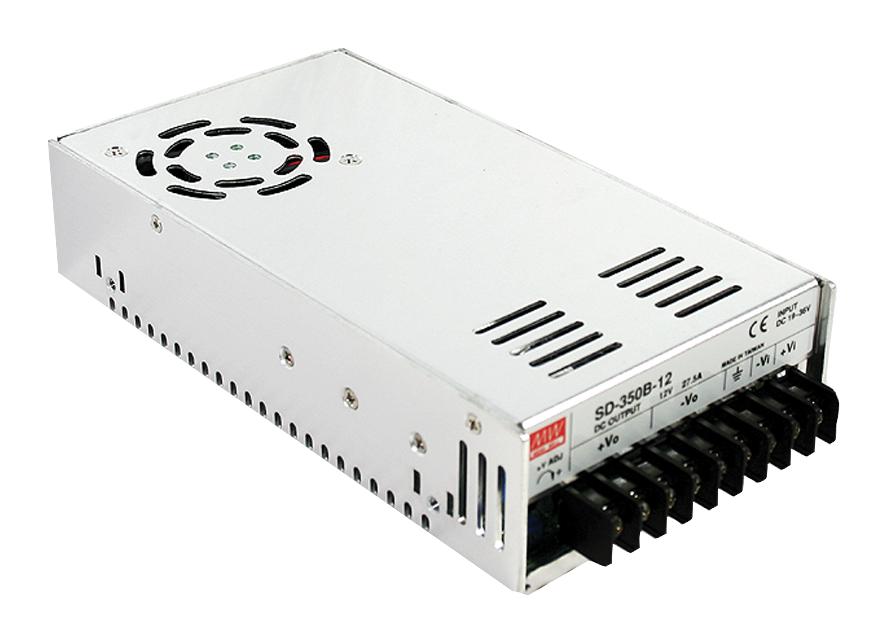

MEAN WELL SD350C5 Industrial Power Supply
The SD-350 series are 350W single output DC-DC converters designed for industrial applications, featuring a wide 2:1 input range, 1500VAC isolation, and forced air cooling with built-in fan. They provide protections against short circuit, overload, over voltage, and over temperature, ensuring reliable operation across various environments. Suitable for power supply needs in automation, instrumentation, and control systems, these converters deliver high efficiency, robust security features, and long MTBF for durable performance in demanding conditions. Their compact size facilitates easy integration into diverse equipment designs.
MEAN WELL SD350C5 Industrial Power Supply Specifications:
- Power Rating: 350W
- Input Voltage Range: 19~36VDC, 36~72VDC, 72~144VDC
- Output Voltage Options: 5V, 12V, 24V, 48V
- Rated Current: 14.6A to 275A depending on model
- Isolation Voltage: 1500VAC
- Ripple & Noise Max: 100mVp-p to 200mVp-p
- Efficiency (Typ): 74% to 89%
- Operating Temperature: -20°C to +60°C (with derating)
- Dimensions: 215mm x 415mm x 50mm
- Protection Features: Short circuit, Overload, Over voltage, Over temperature
- Safety Standards: IEC60950-1, CB approved by TUV
- Working Humidity: 20% to 90% RH non-condensing
- Vibration Resistance: 10Hz to 500Hz, 2G
- MTBF: 209,400 hours minimum
- Safety & Withstand Voltage: 1.5kV AC OIP, 2kV AC UP-FG
Buy the Mean Well Series 350W Power Supply: SD350C5
Purchase the Mean Well SD350C5 power supply online today to secure a robust 350W single output converter ideal for industrial and automation systems. Featuring a wide input voltage range, 1500VAC isolation, and built-in cooling fan, this power supply guarantees dependable operation in demanding environments. Its comprehensive protections including overvoltage, overload, and over temperature safeguard your equipment. Easy to install with standard dimensions, the SD350C5 ensures optimal performance and durability, backed by a 2-year warranty. Order now for reliable, efficient power management.
Order your Mean Well Series 350W power supply SD350C5 today and ensure your industrial projects benefit from reliable, high-performance power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL SD350C5?
You can click on the BUY or RFQ button to purchase SD350C5 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD350C5?
You can download the SD350C5 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD350C5?
MEAN WELL
