MEAN WELL SD50C5 industrial power supply
The 50W Single Output DC-DC Converter series offers reliable power conversion with a 2:1 wide input voltage range, high efficiency, and robust protections including short circuit, overload, and over voltage protection. Designed for industrial applications, it features 1500VAC I/O isolation, built-in EMI filters for low noise, and fixed switching frequency at 88KHz. The series is tested for 100% burn-in, ensuring high reliability, with excellent regulation, low ripple noise, and compact dimensions for versatile deployment in power-sensitive electronic systems.
MEAN WELL SD50C5 industrial power supply Specifications:
- Power: 50W
- Input Voltage Range: 4.5~16VDC, 19~36VDC, 36~72VDC
- Output Voltage: 5V, 12V, 24V
- Rated Current: 140A at 5V, 4.24A at 12V, 2.48A at 24V
- Ripple & Noise: Max 10mVp-p at 5V, 420mVp-p at 12V, 150mVp-p at 24V
- Voltage Tolerance: ±1.0% for 12V/24V, +2.0% for 5V
- Line Regulation: 0.03% to 0.05%
- Load Regulation: 0.02% to 0.05%
- Efficiency: Up to 83%
- Isolation Voltage: 1500VAC between input and output
- Protection: Short circuit, overload, and over voltage in hiccup mode
- Operating Temperature: -10°C to +60°C with derating
- Vibration: 2G at 40-500Hz
- Dimensions: 489mm x 97mm x 38mm
- Compliance: IEC safety standards, EMC EN55022 Class B
- MTBF: >365,000 hours

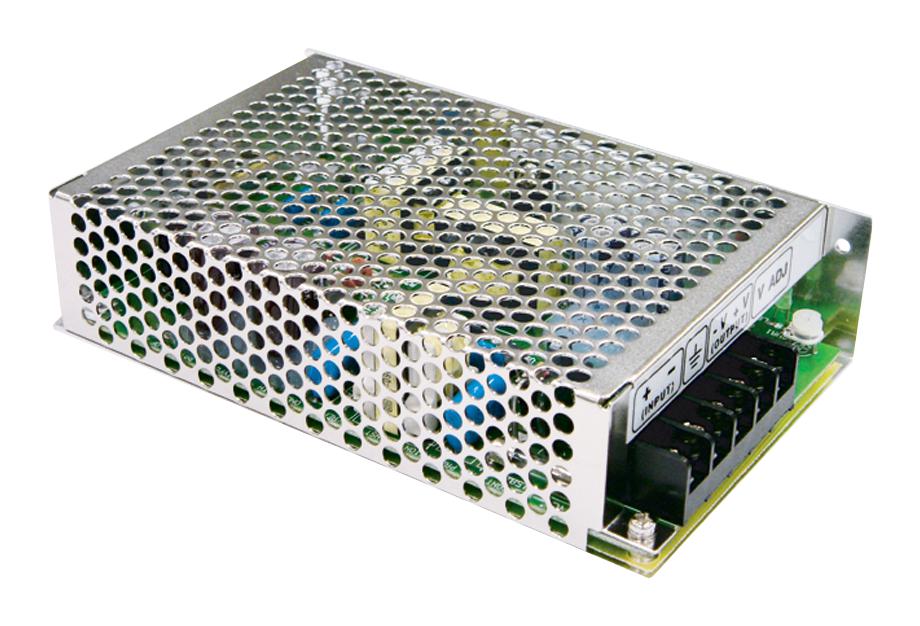

Buy the WellMe Series 50W Power Supply: SD50C5
Purchase the WellMe SD50C5 50W power supply online today and enjoy superior performance, reliable protection features, low ripple noise, and high efficiency. Designed for industrial use, it supports wide input ranges and offers excellent regulation. Its compact size makes it suitable for various electronic systems, ensuring safe and stable power delivery. With a 2-year warranty, this power module is ideal for demanding environments requiring dependable energy conversion, helping you boost operational efficiency while minimizing downtime.
Buy WellMe SD50C5 now and experience unmatched reliability and high efficiency in industrial power applications with robust protections and low noise.
Frequently Asked Questions
Where can I buy MEAN WELL SD50C5?
You can click on the BUY or RFQ button to purchase SD50C5 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD50C5?
You can download the SD50C5 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD50C5?
MEAN WELL
