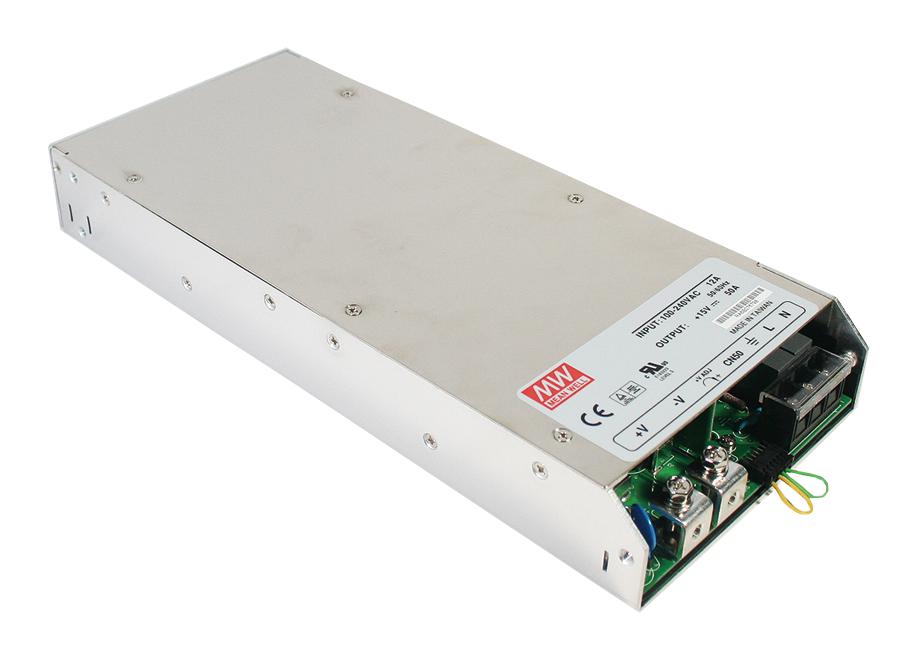

MEAN WELL RSP100024 industrial power supply
The RSP-1000 series is a 1000W single output enclosed power supply designed for industrial, automation, and test applications. This low-profile 1U unit operates on 90-264VAC input, featuring high efficiency up to 90% and built-in active PFC. It includes multiple programmable functions like output voltage adjustment, active current sharing up to 4000W, remote ON/OFF, remote sensing, and auxiliary power. With protections for overvoltage, overload, short circuit, and temperature, plus optional conformal coating, it ensures reliable operation across various environments. Its cooling is by a built-in fan, suitable for temperatures up to 60°C, with a wide input range for flexible deployment, backed by a 5-year warranty.
MEAN WELL RSP100024 industrial power supply Specifications:
- Input Voltage Range: 90~264VAC, 127~370VDC
- Output Power: 1008W
- Output Voltage Options: 12V, 15V, 24V, 27V, 48V
- Rated Current: 60A at 12V, 50A at 15V, 40A at 24V, 37A at 27V, 21A at 48V
- Ripple & Noise: Max. 150mVp-p
- Voltage Adjustment Range: 10~13.5V (12V model), 13.5~16.5V (15V), 20~26.4V (24V), 24~30V (27V), 43~55V (48V)
- Efficiency: Up to 90%
- Protections: Short circuit, Overload, Overvoltage, Over temperature
- Working Temperature: -20°C to +60°C
- Humidity Range: 20~90% RH non-condensing
- Dimensions: 295×127×41 mm (L×W×H)
- Cooling: Built-in fan with speed control
- Certifications: UL/EN/IEC 60950-1, safety, EMC
Buy the Buy MEAN WELL RSP-1000 Series Power Supply Part Number RSP100024 Online
Purchase the MEAN WELL RSP-1000 series 1000W industrial power supply online today. Featuring adjustable output, active current sharing, remote control, and high efficiency of up to 90%, it’s ideal for automation, test, and control systems. Its robust protections include overvoltage, overload, short circuit, and over temperature. The unit’s low profile design fits into 1U racks, with cooling managed by a built-in fan working efficiently up to 60°C. Secure your reliable power source with a 5-year warranty and fast delivery today.
Order your MEAN WELL RSP-1000 series 1KW power supply today and ensure reliable power with high efficiency and extensive protection features for industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL RSP100024?
You can click on the BUY or RFQ button to purchase RSP100024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RSP100024?
You can download the RSP100024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RSP100024?
MEAN WELL
