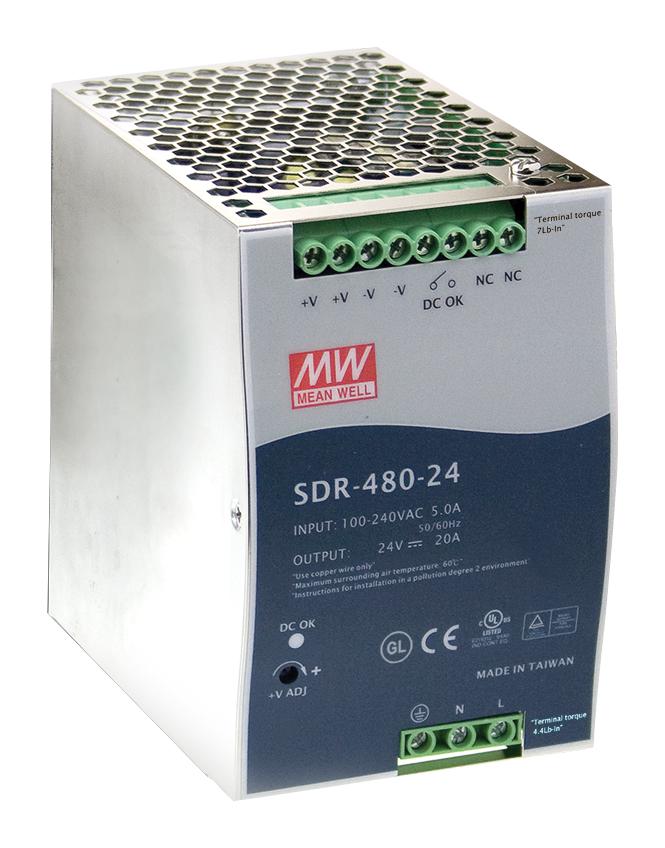

MEAN WELL SDR48048 Industrial DIN rail power supply
The SDR-480 series is a 480W industrial DIN rail power supply with a built-in active PFC function, high efficiency of 94%, and peak load capability of 150%. It features protections against short circuit, overload, overvoltage, and overtemperature. Suitable for industrial control and automation systems, it is UL 508 and EN61000-6-2 certified. The power supply includes a DC OK relay contact, supports installation on TS-35/7.5 or TS-35/15 DIN rails, and ensures reliable operation with a 3-year warranty. Its compact design and cooling by free air convection make it ideal for industrial environments.
MEAN WELL SDR48048 Industrial DIN rail power supply Specifications:
- Power: 480W
- Output Voltage: 48V
- Rated Current: 10A
- Peak Current: 15A
- Ripple & Noise: 120mVp-p
- Efficiency: 94%
- Input Voltage Range: 90~264VAC, 127~370VDC
- Frequency Range: 47-63Hz
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Cooling: Free air convection
- Installation: DIN rail TS-35/7.5 or TS-35/15
- Certifications: UL 508, EN61000-6-2
- Dimensions: 125.2mm x 85.5mm x 128.5mm
- Working Temperature: -25°C to +70°C
- Humidity: 20% to 96% RH non-condensing
- MTBF: 4712.9K hours
- Safety & EMC: Compliant with relevant standards
Buy the Mean Well Series SDR-480 48V Power Supply: SDR48048
Secure your industrial control system's power needs by purchasing the Mean Well SDR-48048 power supply online. This high-quality unit offers 480W power, 94% efficiency, built-in active PFC, and protections including short circuit, overload, and overtemperature. It is UL and EN certified, supports DIN rail mounting, and comes with a 3-year warranty. Designed for reliable operation in harsh environments, it ensures stable output and is suitable for automation and control systems requiring consistent, high-performance power solutions. Order today for fast delivery and optimal performance.
Buy Mean Well SDR48048 now and experience unmatched reliability and performance with high efficiency and robust protections for industrial applications.
Frequently Asked Questions
Where can I buy MEAN WELL SDR48048?
You can click on the BUY or RFQ button to purchase SDR48048 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SDR48048?
You can download the SDR48048 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SDR48048?
MEAN WELL
