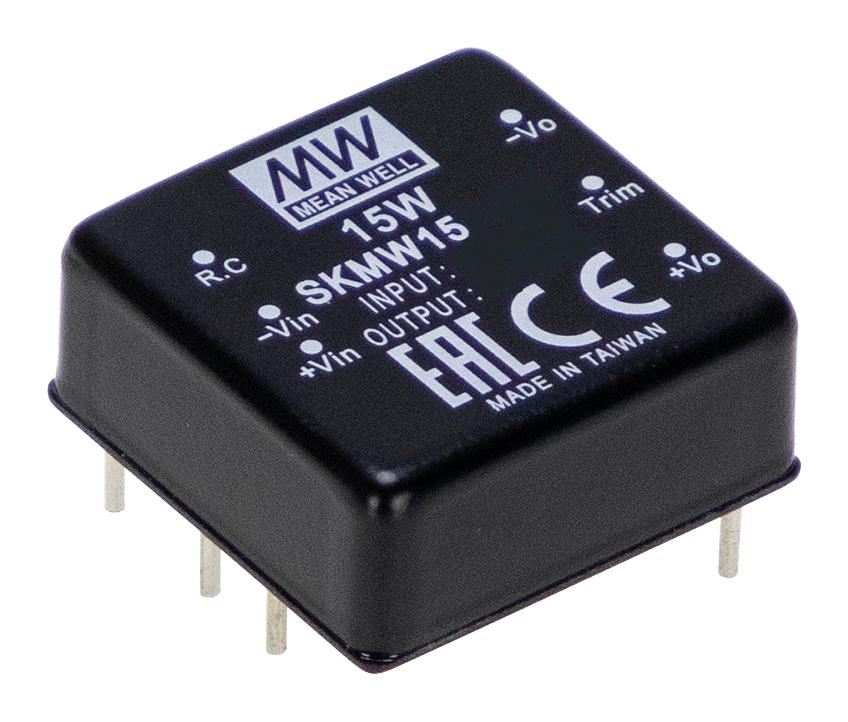

MEAN WELL SKMW15G03 Industrial DC-DC Converter
The SKMW15G03 is a 15W isolated, regulated DC-DC converter in a 1x1-inch package, featuring high efficiency up to 89%, wide temperature range from -40°C to +85°C, and 3KVDC input-output isolation. It supports ultrawide input ranges of 9-36V or 18-75V, with various output voltages including 3.3V, 5V, 12V, and 15V, suitable for telecom, industrial control, and data communication applications. It complies with EN55032 Class A radiated emissions, offers protections like overvoltage, overload, short circuit, and input under-voltage, and includes a 3-year warranty.
MEAN WELL SKMW15G03 Industrial DC-DC Converter Specifications:
- Input Voltage: 9-36V or 18-75V ultrawide range, depending on model
- Output Voltages: 3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V
- Rated Power: 15W (except for 3.3V output - 10W)
- Input-Output Isolation: 3KVDC
- Efficiency: Up to 89%
- Operating Temperature Range: -40°C to +85°C
- Ripple & Noise: 50mVp-p (max)
- Protection Features: Short circuit (continuous), overload, overvoltage, input under-voltage
- Voltage Accuracy: +2%
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Switching Frequency: 300KHz (typ)
- MTBF: 220,000 hours
- Dimensions: 25.4mm x 25.4mm x 10.2mm (1x1x0.4 inch)
- Enclosure: Black coated metal with non-conductive base
- Compliance: EN55032 Class A radiated emissions
- Soldering Temp: 265°C for 3-5 seconds
- Vibration: 10-500Hz, 2G for 60 minutes
Buy the Mean Well SKMW15G03 – Reliable Isolated DC-DC Converter for Industrial Applications
Purchase the Mean Well SKMW15G03 industrial 15W isolated DC-DC converter online today and secure a high-efficiency, compact power solution. Designed for industrial control, telecom, and datacom applications, this converter features ultrawide input ranges of 9-36V or 18-75V, high efficiency up to 89%, and robust protections including overvoltage and short circuit. Its 3KVDC isolation and compliance with EN55032 Class A standards ensure safe and reliable operation in demanding environments. Order now for quick delivery and dependable performance.
Order your Mean Well SKMW15G03 industrial DC-DC converter today and enhance your projects with reliable, high-efficiency power solutions suitable for telecom and control systems.
Frequently Asked Questions
Where can I buy MEAN WELL SKMW15G03?
You can click on the BUY or RFQ button to purchase SKMW15G03 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SKMW15G03?
You can download the SKMW15G03 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SKMW15G03?
MEAN WELL
