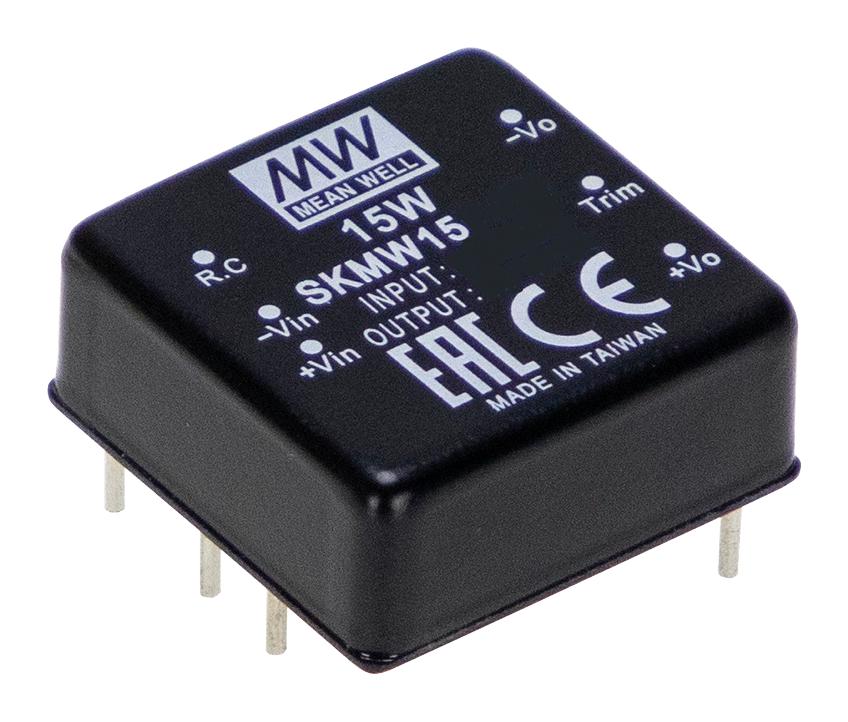

MEAN WELL SKMW15G15 DC-DC Converter
The SKMW15G-15 is a 15W isolated, regulated DC-DC converter in a compact 1x1-inch DIP package, featuring wide input ranges of 9-36V or 18-75V, high efficiency up to 89%, and robust protections including short circuit, overload, and overvoltage. Designed for industrial, telecom, and data system applications, it offers 3KVDC input-output isolation, compliance with EN55032 Class A standards, and operation from -40°C to +85°C. Its versatile output options include 3.3V, 5V, 12V, and 15V, suitable for distributed power architectures and electronic control systems.
MEAN WELL SKMW15G15 DC-DC Converter Specifications:
- Input Voltage Range: 9~36V or 18~75V with ultrawide 4:1 range
- Output Voltages: 3.3V, 5V, 12V, 15V (single), +5V, +12V, +15V (dual)
- Rated Power: 15W
- Efficiency: Up to 89%
- Isolation Voltage: 3KVDC input-output
- Operating Temperature Range: -40°C to +85°C
- Ripple & Noise: 50mVp-p (max.)
- Line Regulation: +0.5%
- Load Regulation: +0.5%
- Switching Frequency: 300KHz
- Protection: Short circuit (automatic recovery), Overload, Overvoltage
- Startup Voltage: 9.0V (24V input), 17.3V (48V input)
- Cooling: Free-air convection
- Case Material: Black coated metal with non-conductive base
- Dimensions: 25.4mm x 25.4mm x 10.2mm
- Compliance: EN55032 Class A without external components
- Isolation Resistance: 100 MΩ at 500VDC
- Isolation Capacitance (typ.): 1200pF
- Vibration & Shock Resistance
- Storage Temp: -55°C to +125°C
Buy the Mean Well Series 15W DC-DC Converter: SKMW15G15
Secure your power management with the SKMW15G15 from Mean Well. This 15W isolated, regulated converter offers high efficiency up to 89%, wide temperature operation, and full protections including short circuit and overvoltage. Its compact 1x1-inch DIP package makes it ideal for industrial, telecom, and data systems. With input ranges of 9-36V and 18-75V, multiple voltage options, and EN55032 Class A compliance, it ensures dependable performance in demanding environments. Order now for reliable power conversion.
Buy Mean Well SKMW15G15 now and experience unmatched reliability and performance in industrial power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL SKMW15G15?
You can click on the BUY or RFQ button to purchase SKMW15G15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SKMW15G15?
You can download the SKMW15G15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SKMW15G15?
MEAN WELL
