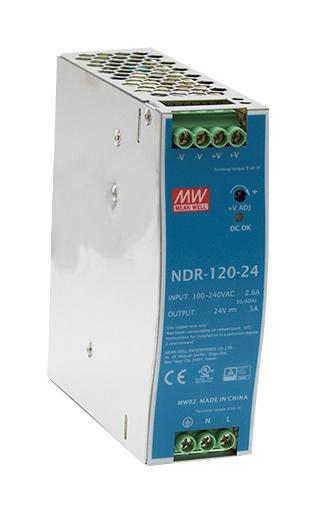

MEAN WELL NDR12024 Industrial DIN Rail Power Supply
NDR-120 series is an economical 120W DIN rail power supply designed for industrial automation, control systems, and semiconductor fabrication equipment. It features full-range AC input from 90VAC to 264VAC, with high efficiency up to 89%, and operates within a temperature range of -20°C to 70°C. The metal housing ensures good heat dissipation. It includes protections against short circuits, overloads, over-voltage, and temperature. Suitable for DIN rail TS-35/7.5 or 15 mounting, certified with UL 508 and IEC standards, ideal for factory automation and industrial control applications.
MEAN WELL NDR12024 Industrial DIN Rail Power Supply Specifications:
- Output Power: 120W
- Input Voltage: 90~264VAC
- Input Frequency: 47~63Hz
- Efficiency: Up to 89%
- Output Voltage Range: 12~14V, 24~28V, 48~55V
- Rated Output Current: 140A, 5A, 25A
- Ripple & Noise: 100mVp-p, 120mVp-p, 150mVp-p
- Dimensions: 113.5mm (W) x 125.2mm (H) x 113.5mm (D)
- Operating Temperature: -20°C to 70°C
- Protection Features: Overload, Over-voltage, Over-temperature, Short circuit
- Certifications: UL 508, IEC 62368-1, EN61000-6-2
- MTBF: 2636.8K hours
Buy the Mean Well NDR-120 – Reliable Industrial DIN Rail Power Supply for Automation
Order the reliable and efficient industrial DIN rail power supply today. With full-range AC input, high efficiency, and comprehensive protections, the NDR-120 series is ideal for factory automation, semiconductor equipment, and control systems. Its compact design and DIN rail mounting compatibility simplify installation in industrial environments. Enjoy peace of mind with certified safety standards, long MTBF, and a 3-year warranty. Purchase online now to ensure continuous operation of your industrial equipment with a trusted power solution.
Buy Mean Well NDR-120 now and experience unmatched reliability and performance in industrial automation and control systems.
Frequently Asked Questions
Where can I buy MEAN WELL NDR12024?
You can click on the BUY or RFQ button to purchase NDR12024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part NDR12024?
You can download the NDR12024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of NDR12024?
MEAN WELL
