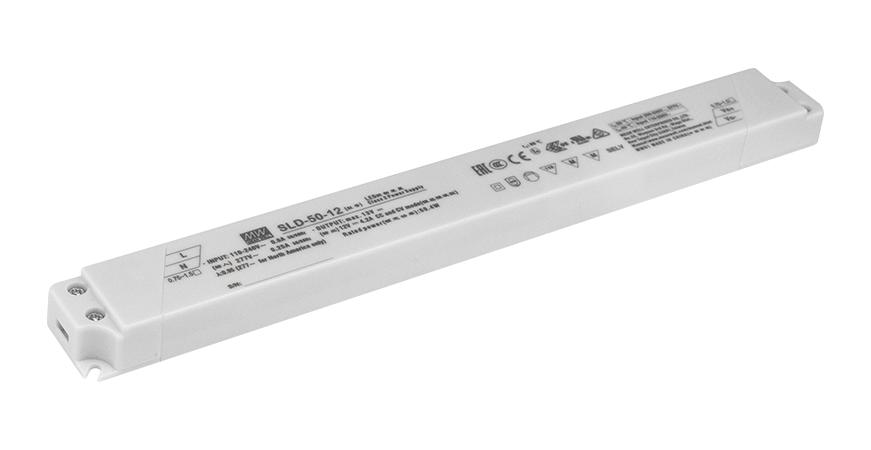

MEAN WELL SLD5012 Linear LED Driver
The SLD-50 series is a versatile 50W linear LED driver designed with dual-mode constant voltage and constant current output for diverse lighting applications. Operating efficiently from 110 to 305VAC, this driver offers models with output voltages ranging from 12V to 56V, supporting signage, linear luminaires, and decorative lighting. With high efficiency up to 90%, a fanless design, and operating temperature from -20°C to +90°C, it ensures reliable performance and long lifespan exceeding 30,000 hours. Its slim, linear housing makes installation flexible in various environments, meeting safety and EMC standards for industrial and commercial use.
MEAN WELL SLD5012 Linear LED Driver Specifications:
- Rated Power: 50W
- Input Voltage Range: 110-305VAC
- Output Voltages: 12V, 24V, 56V (model specific)
- Rated Output Current: 8.4-12V at 0.428A, 24V at 2.44A, 56V at 0.9-1.4A
- Efficiency: Up to 90%
- Ripple & Noise: Max 150-240mVp-p
- Voltage Tolerance: +4.0% (12V), +3.0% (24V)
- Operating Temperature: -20°C to +90°C
- Dimensions: approximately 280 x 30 x 16.8 mm
- Protection: Short circuit, over voltage, over temperature
- Certifications: UL8750, CSA, ENEC, EN61347, CE, CB
- Ageing Life Expectancy: >30,000 hours
- Vibration Resistance: 2G, 10-500Hz
- Working Humidity: 20-95% RH non-condensing
- Storage Temperature: -40°C to +80°C
Buy the MEAN WELL SLD-50 U–2013 Reliable LED Driver for Industrial Applications
Experience reliable and high-efficiency lighting with the MEAN WELL SLD-50 linear LED driver. Perfect for signage, linear luminaires, and decorative lighting, it features dual-mode constant voltage and constant current outputs. Operating from 110 to 305VAC with efficiency up to 90%, it ensures long-lasting performance of over 30,000 hours. Its slim, linear design allows versatile installation in various environments. With comprehensive safety protections and certifications, purchase this high-quality power device online today for your industrial and commercial lighting solutions.
Get MEAN WELL SLD-50 today—built for precision and long-lasting durability in linear lighting and signage projects.
