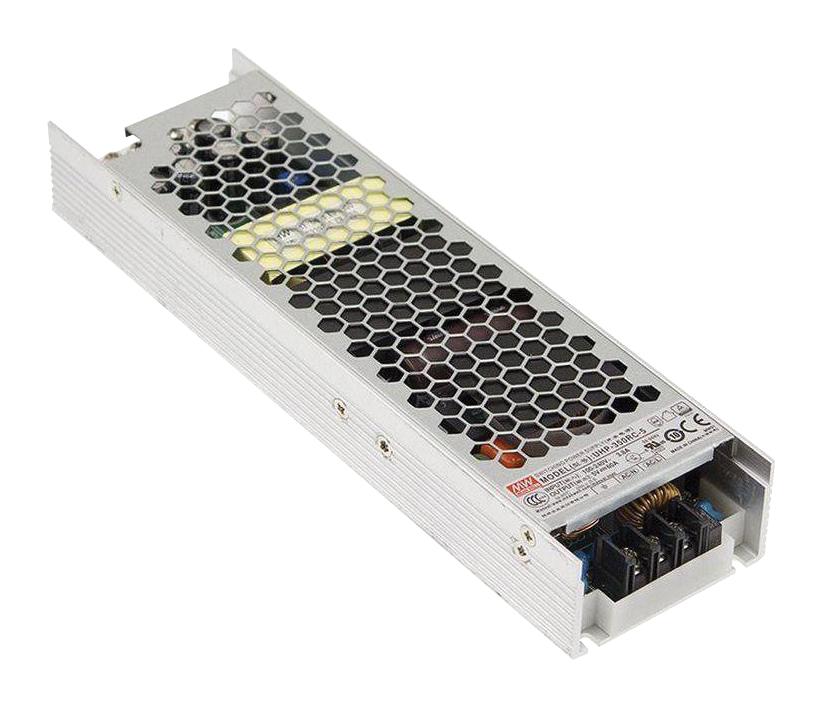

MEAN WELL UHP35033 industrial power supply
The UHP-350 series is a slim, 350W power supply designed for industrial automation and control systems. Its low profile of 31mm allows easy integration into space-constrained environments. It features full range 90~264VAC input, high efficiency up to 94%, and offers various output voltages including 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V. The power supply operates reliably from -30°C to 70°C, with protections for overvoltage, overcurrent, and thermal shutdown. It supports high inrush current, has a compact footprint, and complies with international safety standards such as UL60950-1 and EN60950-1, ensuring safe and stable operation for industrial applications.
MEAN WELL UHP35033 industrial power supply Specifications:
- Power Output: 350W
- Input Voltage: 90~264VAC, 47~63Hz
- Output Voltages: 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V
- Maximum Output Current: 60A for 3.3V and 4.2V, 29.24A for 5V, 23.4A for 12V, 14.64A for 15V, 9.75A for 24V, 7.3A for 36V
- Efficiency: Up to 94%
- Ripple & Noise: Max 150-240mVp-p depending on model
- Dimensions: 220 x 62 x 31 mm (L x W x H)
- Operating Temperature: -30°C to +70°C
- Protections: Overvoltage, Overload, Over temperature, Short circuit
- Enclosure: Slim, low profile (31mm), fanless convection cooling
- Safety Standards: UL60950-1, EN60950-1, GB4943, and more
- Vibration Resistance: 10G, 10Hz to 500Hz
- MTBF: 285,000 hours
Buy the Buy MEAN WELL UHP-350 Series Power Supply Part Number UHP35033 Online
Enhance your industrial systems with the MEAN WELL UHP-350 power supply, a slim and efficient 350W model designed for space-saving installation. Its full range AC input, high efficiency up to 94%, and multiple output voltages make it versatile for various applications. Constructed for durability, it offers overvoltage, overload, and thermal protections, ensuring safe operation. Ideal for automation, control systems, and electrical equipment, it guarantees stability and performance even in demanding environments. Purchase online today for a dependable power solution for your industrial needs.
Order your MEAN WELL UHP-350 series power supply today and ensure reliable power delivery for your industrial automation projects.
Frequently Asked Questions
Where can I buy MEAN WELL UHP35033?
You can click on the BUY or RFQ button to purchase UHP35033 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part UHP35033?
You can download the UHP35033 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of UHP35033?
MEAN WELL
