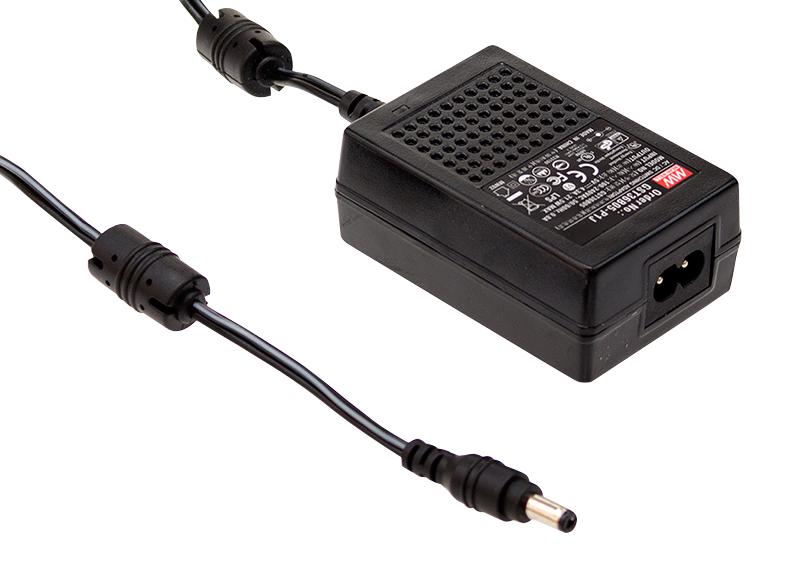

MEAN WELL GST36B05P1J Power Adapter
GST36B series are highly reliable 36W power adapters designed for industrial and consumer applications, featuring universal AC input from 85VAC to 264VAC, high efficiency up to 90%, and low no-load power consumption below 0.075W. These class II power supplies provide outputs ranging from 5V to 48V DC, with robust safety features, certifications, and a flame-retardant plastic enclosure. Suitable for telecommunication, medical, and industrial equipment, they meet international standards such as UL, TUV, CE, and more — combining energy efficiency, durability, and safety in a compact design.
MEAN WELL GST36B05P1J Power Adapter Specifications:
- Input Voltage Range: 85VAC to 264VAC
- Output Power: 28W to 36W depending on model
- Output Voltage: 5V, 9V, 12V, 24V, 48V DC
- Rated Current: 3A at 12V, 3A at 9V, 3.11A at 5V, 0.75A at 48V
- Ripple & Noise: up to 240mVp-p
- Efficiency: up to 90%
- Protections: Short circuit, Overload, Over voltage, Recovers automatically
- Operating Temperature: -30°C to +70°C
- Dimensions: 79mm x 54mm x 33mm
- Safety Standards: UL60950-1, EN60950-1, CE, BSMI CNS14336, CCC
- Certifications: LPS, Class II (no earth pin)
- Working Humidity: 20% to 90% RH non-condensing
Buy the Mean Well Series GST36B Power Adapter: GST36B05P1J
Order the reliable Mean Well GST36B power adapter online now to ensure high performance and energy efficiency for your industrial or consumer electronic devices. This compact, UL-certified adaptive power supply offers a wide input voltage range and high efficiency up to 90%, providing safe, stable power with protections against short circuits, overloads, and overvoltage. Suitable for telecommunication, industrial, and medical applications, it features a durable plastic enclosure, low no-load power consumption, and compliance with international standards. Purchase today to enjoy fast delivery and warranty service.
Get Mean Well GST36B series power adapter today—optimized for energy efficiency, reliability, and safety in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy MEAN WELL GST36B05P1J?
You can click on the BUY or RFQ button to purchase GST36B05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST36B05P1J?
You can download the GST36B05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST36B05P1J?
MEAN WELL
