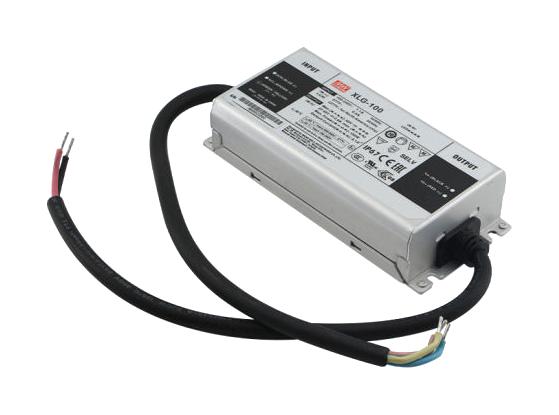

MEAN WELL XLG10012A LED Driver
The XLG-100 series is a high-efficiency, 100W LED driver designed for indoor and outdoor use. It features a wide input voltage range from 100 to 305VAC, with models supporting constant power operation in harsh environments. Its IP67 metal casing withstands outdoor conditions, and surge protection up to 6KV/4KV ensures reliability against input transients. Equipped with programmable current adjustment, dimming options (0–10VDC, PWM, resistance), and multiple safety protections (OVP, SCP, OCP, OTP), this driver offers a lifetime exceeding 50,000 hours for versatile, durable lighting solutions compliant with international standards.
MEAN WELL XLG10012A LED Driver Specifications:
- Input Voltage: 100~305VAC, 47~63Hz
- Output Power: 96W
- Constant Current Region: 8.4~12V 16.8 24V
- Rated Current: 8A (XLG-100-12), 4A (XLG-100-24)
- Ripple & Noise: Max 150mVp-p
- Efficiency: Up to 92%
- Protection: OVP, SCP, OCP, OTP
- Surge Protection: 6KV/4KV (optional 10KV/6KV)
- Life Expectancy: >50,000 hours
- Operating Temperature: -40°C to +90°C, case temperature up to +90°C
- Ingress Protection: IP67
- Dimensions: Approximately 140*63*32mm
- Vibration Resistance: 10-500Hz, 5G for 72 min/axis
- Compliance: IEC61347, UL8750, ENEC, CE
- Isolation Voltage: O/P–O/P: 3.75KVAC, O/P–FG: 2KVAC
- Housing: Metal case for outdoor durability
- Input Current: 4A at 230VAC, 0.5A at 115VAC
Buy the MEAN WELL XLG-100 U–2013 Reliable LED Driver for Industrial Applications
Enhance your lighting systems with the MEAN WELL XLG-100 LED driver, offering high efficiency, IP67 protection for outdoor use, and versatile dimming options. Built for durability in harsh environments, this 100W driver complies with international standards such as IEC61347 and UL8750. Its wide input voltage range from 100 to 305VAC ensures reliable operation across different regions. With surge protection, safety features, and a long lifespan exceeding 50,000 hours, it provides an ideal solution for street, floodlight, and industrial lighting, available for quick purchase online.
Order your MEAN WELL SeriesXLG-100 LED driver today and give your outdoor and industrial lighting projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy MEAN WELL XLG10012A?
You can click on the BUY or RFQ button to purchase XLG10012A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG10012A?
You can download the XLG10012A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG10012A?
MEAN WELL
