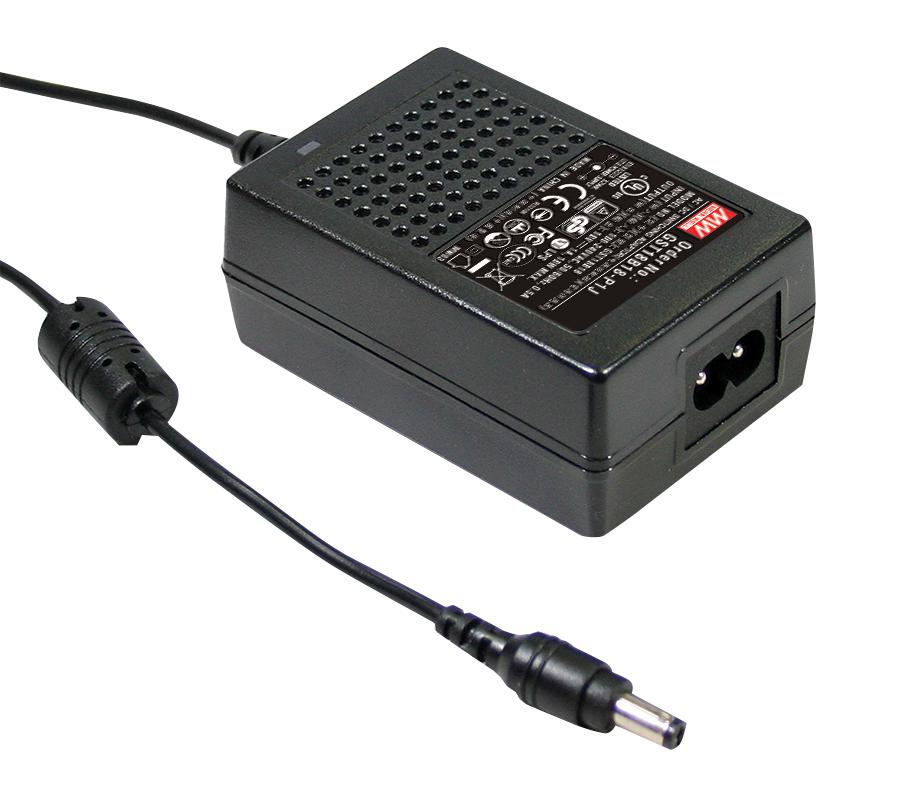

MEAN WELL GST18B05P1J Industrial Power Adapter
GST18B is a highly reliable, 18W desktop-style single-output power adapter series designed for industrial applications and consumer electronics. It features an input range of 85VAC to 264VAC, high efficiency up to 89%, and extremely low no-load power consumption below 0.075W. The fully enclosed flame-retardant plastic case provides safety and insulation, complying with international standards. This class II power supply, without earth pin, includes protections against short circuit, overload, and overvoltage. Its versatility and energy-saving design make it ideal for telecommunication, office, and industrial equipment, backed by a 3-year warranty.
MEAN WELL GST18B05P1J Industrial Power Adapter Specifications:
- Input Voltage: 85VAC to 264VAC, 47~63Hz
- Output Power: 18W
- Output Voltage Options: 5V, 7V, 12V, 15V, 18V, 24V, 48V
- Rated Current: 3.04A (5V), 2.08A (7V), 2.0A (12V), 4.50A (15V), 4.20A (18V), 4.08A (24V), 0.75A (48V)
- Ripple & Noise (Max): 80mVp-p to 240mVp-p depending on model
- Voltage Tolerance: ±3.0% to ±5.0%
- Line Regulation: ±1.0% to ±10%
- Load Regulation: ±5.0% to ±20%
- Efficiency (Typ.): 81% to 89%
- Protection: Short circuit, Overload (110-150%), Over voltage
- Operating Temp: -30°C to +70°C
- Storage Temp: -40°C to +85°C
- Humidity: 20% to 90% RH non-condensing
- Dimensions: 79mm x 54mm x 33mm
- Certifications: UL, TUV, CB, CE, BSMI, CCC, AS/NZS
- Environmental Compliance: Energy Efficiency Level VI, No load power < 0.075W
- Wiring: Standard IEC320-C8 inlet, optional accessories available
Buy the Buy Mean Well 18W Industrial Power Adapter Part Number GST18B05P1J Online
Experience high reliability and exceptional energy efficiency with the Mean Well 18W industrial power adapter. Designed to meet international safety standards, it features a wide input range from 85VAC to 264VAC and provides multiple output voltages suitable for various electronic and industrial applications. Its compact, fully enclosed flame-retardant plastic case ensures safety and durability. With protections against short circuits, overloads, and overvoltage, this power supply guarantees reliable operation even in demanding environments. Purchase online now for efficient energy management and dependable performance in your projects.
Get Mean Well 18W industrial power adapter today—built for energy efficiency, safety, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MEAN WELL GST18B05P1J?
You can click on the BUY or RFQ button to purchase GST18B05P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GST18B05P1J?
You can download the GST18B05P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GST18B05P1J?
MEAN WELL
