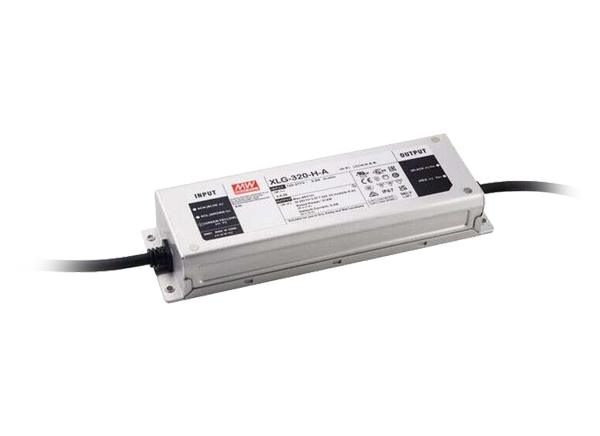

MEAN WELL XLG320HAB 315W Constant Power LED Driver
The MEAN WELL XLG-320 series is a 315W AC/DC LED driver offering constant power mode and high voltage output. Operating from 100~305VAC, it provides models with varying current ratings. The driver's design incorporates a metal housing, IP67 ingress protection, and innovative environment-adaptive capabilities, making it suitable for both indoor and outdoor applications. It complies with international safety regulations and features a 3-in-1 dimming function and comprehensive protection features like OLP, SCP, OVP, and OTP. The XLG-320 series is ideal for bay lighting, flood lighting, horticulture lighting, and other LED lighting applications requiring a robust and reliable power solution.
MEAN WELL XLG320HAB 315W Constant Power LED Driver Specifications:
- Voltage Dips and Interruptions: BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods
- Magnetic Field: BS EN/EN61000-4-8 Level 4
- Conducted: BS EN/EN61000-4-6 Level 2
- EFT / Burst: BS EN/EN61000-4-4 Level 3
- ESD: BS EN/EN61000-4-2 Level 3, 8KV air ; Level 2, 4KV contact
- Voltage Flicker: BS EN/EN61000-3-3
- Harmonic Current: Class C @load≥50% BS EN/EN61000-3-2, GB/T17625.1
- LINE REGULATION: ±0.5%
- VOLTAGE TOLERANCE: ±3%
- RIPPLE & NOISE(max.): 240mV p-p
- CURRENT TOLERANCE: ±5%
- CURRENT RIPPLE: 5.0% max. @rated current
- OPEN CIRCUIT VOLTAGE (max.): 340V (L), 180V (M), 60V (H), NC (V)
- RATED POWER: 315W
- FULL POWER CURRENT RANGE: 1050~1400mA (L), 2100~2800mA (M), 5570~7420mA (H), 13~18A (V)
- VOLTAGE RANGE: 150~300V (L), 74~148V (M), 30~56V (H), NC (V)
- FREQUENCY RANGE: 47 ~ 63Hz
- AC CURRENT (Typ.): 3A / 120VAC, 1.6A / 230VAC, 1.3A / 277VAC
- INRUSH CURRENT(Typ.): COLD START 45A (twidth=1200 s measured at 50% Ipeak)
- LEAKAGE CURRENT: 0.75mA / 277VAC
- WORKING HUMIDITY: 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
- MTBF: 1476.4K hrs min. (Telcordia SR-332), 168.1 K hrs min. (MIL-HDBK-217F)
- DIMENSION: Packing: 1.45Kg; 9pcs/14Kg/0.76CUFT
- OVER VOLTAGE: 350 ~ 380V
- OVER TEMPERATURE: Tcase>85℃±5℃ (L/M/H), Shut down output voltage (V)
- EFFICIENCY (Typ.): 94.5% (L), 93.5% (M), 92.5% (H), 93% (V)
- TOTAL HARMONIC DISTORTION: NC
- CONSTANT CURRENT REGION: NC
Buy the XLG-320-H-AB MEAN WELL 315W Constant Power LED Driver | myMectronic
Purchase the MEAN WELL XLG-320-H-AB LED driver securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MEAN WELL XLG320HAB?
You can click on the BUY or RFQ button to purchase XLG320HAB from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part XLG320HAB?
You can download the XLG320HAB datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of XLG320HAB?
MEAN WELL
