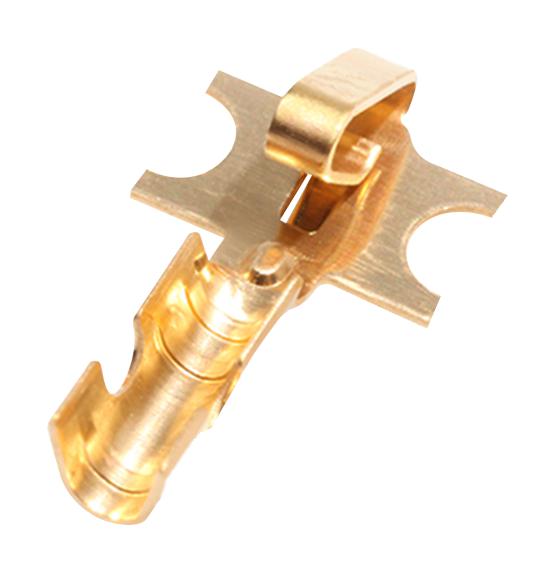

MOLEX 08550130 KK 254 Crimp Terminal
The MOLEX 0008550130 is a KK 254 Crimp Terminal, part of the KK Interconnect System. This terminal is designed for secure and reliable connections in a variety of applications. It accommodates wire gauges ranging from 22 to 30 AWG and features a selective gold plating on the mating surface, providing excellent conductivity and corrosion resistance. A nickel underplating enhances durability. This terminal is typically used in signal transmission applications where a robust and dependable connection is required. Refer to the product specification documents for detailed tooling and performance characteristics.
MOLEX 08550130 KK 254 Crimp Terminal Specifications:
- Material - Metal: Brass
- Material - Plating: Gold
- Plating min - Mating: 0.762µm
- Plating min - Termination: 0.051µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.57mm max.
- Wire Size AWG: 22, 24, 26, 28, 30
- Net Weight: N/A
- Packaging Type: Reel
- Engineering Number: 2759-(558)B
- Wire Size mm²: N/A
- Application: Signal
- Product Family Series: 2759
- UPC: 800754226561
- Use With: 2695 , 5051
- Lead-freeProcess Capability: N/A
- Halogen-Free Status: Low-Halogen
