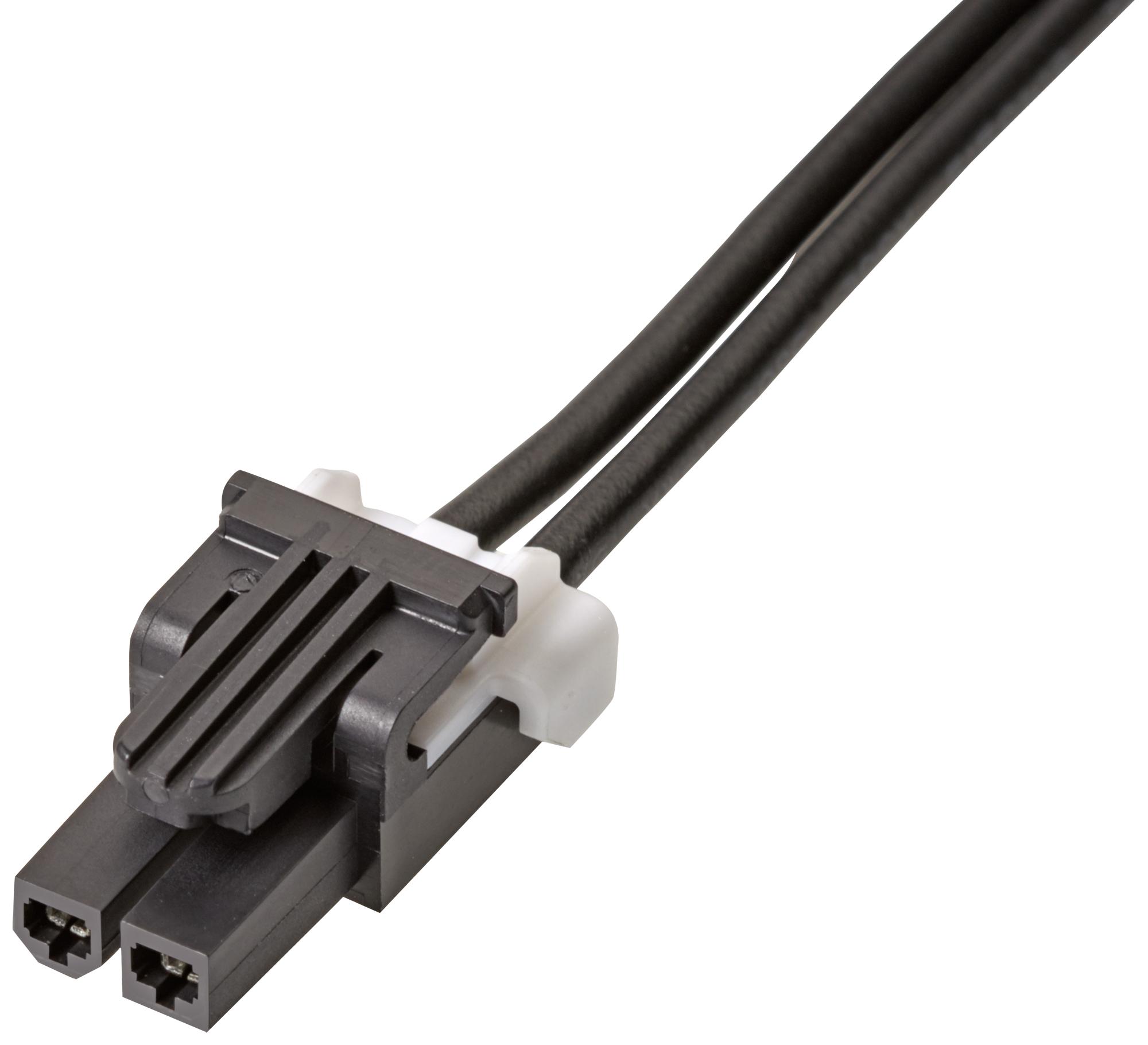

MOLEX 1451350201 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0201 is an Off-the-Shelf (OTS) Discrete Cable Assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly utilizes Mini-Fit TPA2 connectors on both ends, offering a secure and reliable connection. It boasts a 150mm cable length, 2 circuits, and is overmolded for enhanced durability. Constructed with phosphor bronze and nylon materials, and featuring tin plating for both mating and termination interfaces, this cable assembly is suitable for a wide range of industrial and commercial applications. It is RoHS compliant and REACH SVHC substances are not contained.
MOLEX 1451350201 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 8.179/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_max_per_contact: 11.0A
- voltage_max: 600V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- drawing_number: 4000095324-000
