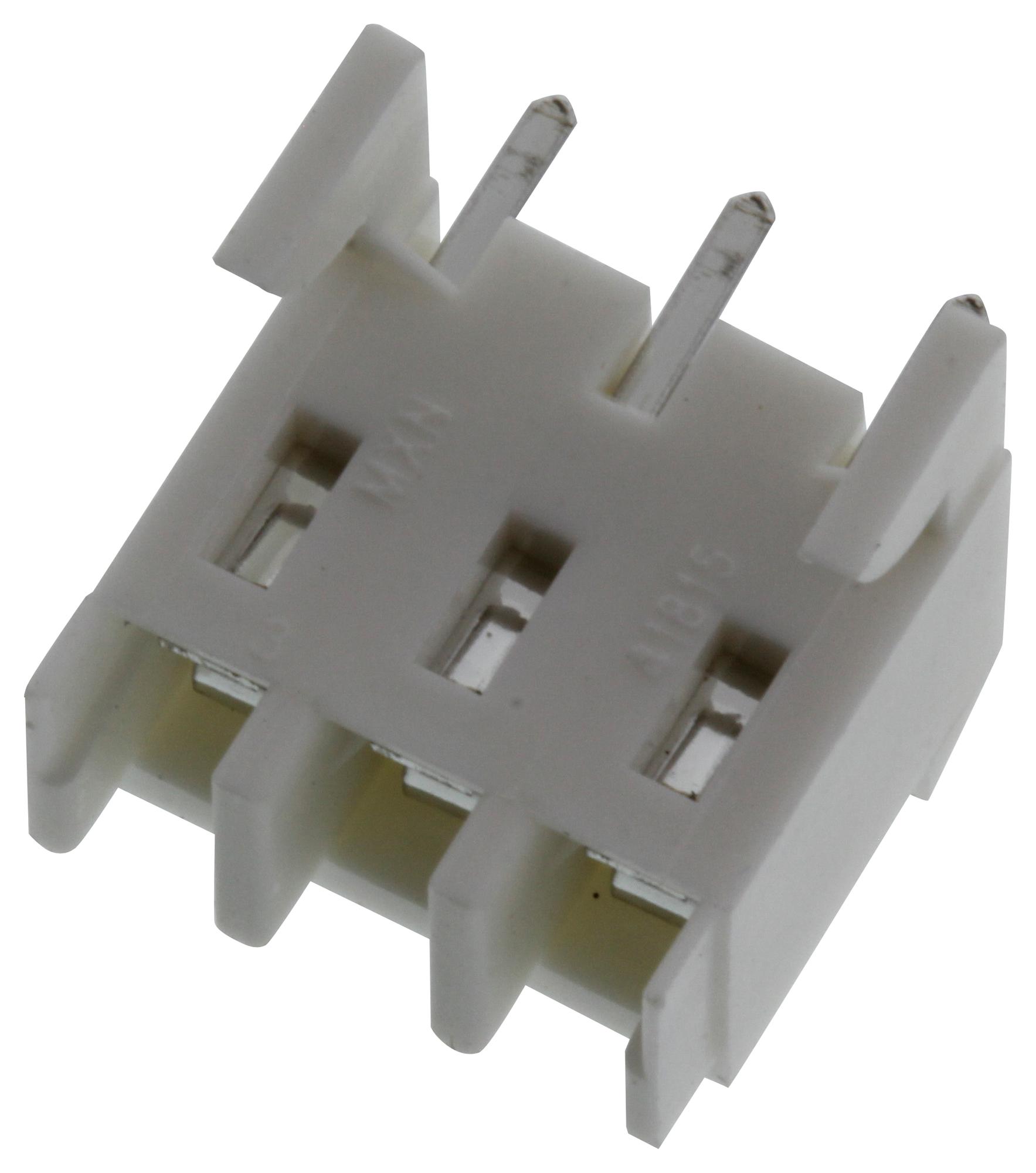

MOLEX 09484039 KK 396 PC Board Connector
The MOLEX 09-48-4039 is a KK 396 PC Board Connector within the 41815 series. This connector is designed for board-to-board applications and features a bottom entry design. It accommodates 3 circuits and utilizes a polyester connector with tin plating for both mating and termination surfaces. The connector is polarized to the PCB and offers a recommended PCB thickness of 0.80mm, making it suitable for a variety of electronic assemblies. It is RoHS compliant and has a maximum current rating of 5.0A and a maximum voltage of 250V.
MOLEX 09484039 KK 396 PC Board Connector Specifications:
- overview: KK® Interconnect System
- description: KK 396 PC Board Connector, Bottom Entry, Polyester Connector
- plating_mating: 5.00µm Tin (Sn)
- circuits_loaded: 3 Circuits (maximum)
- color_resin: Natural
- flammability: 94V-0
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 0.981/g
- number_of_rows: 1
- orientation: Bottom Entry
- pc_tail_length: 3.18mm
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended: 0.80mm
- packaging_type: Tray
- pitch_mating_interface: 3.96mm
- plating_min_mating: 5.080µm
- plating_min_termination: 5.080µm
- polarized_to_pcb: No
- temperature_range_operating: See Product Specification
- termination_interface_style: Through Hole
- current_maximum_per_contact: 5.0A
- voltage_maximum: 250V
- duration_at_max_process_temperature_seconds: 005
- lead_free_process_capability: WAVE
- max_cycles_at_max_process_temperature: 001
- process_temperature_max_celsius: 235
- engineering_number: A-41815-0031
- agency_certification_csa: LR19980
- agency_certification_ul: E29179
- upc: 800754903981
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per -ED/88/2018 (15 January 2019)
- halogen_free_status: Not Low-Halogen
- rohs_phalates: Not Contained
